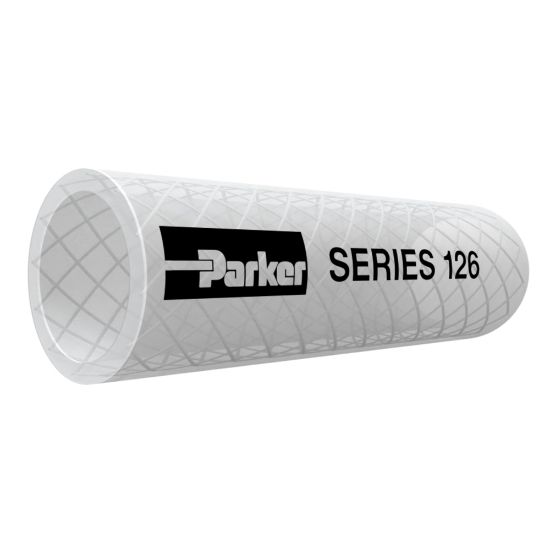

Parker 126-08000300 - NEXBRAID® PVC Clear Heavy Duty General Service Hose, Series 126

Nexbraid PVC Clear Heavy Duty General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 350 psi, Series 126

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 126-08000300

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Specifications Met	NSF 51 (certified to 180°F / 82°C)
Media	Food & Beverage	Package Type	Coil
Vacuum Pressure Rating	Light	Hose Inner Tube Material	Clear
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	-5 °C
Weight	0.26 kg/m	Maximum Operating Pressure	17.2 bar at 20°C
Application	PVC Hose	Outside Diameter	20.6 mm
Cover Color	Transparent	Cover Material	PVC
Cover Structure	Smooth	Inside Diameter	12.7 mm
Length per Package	300 ft	Minimum Bend Radius	n/a
Hose Reinforcement Material	2 Plies of Textile	Hose I.D. (inch)	1/2
Maximum Working Pressure (psi)	250 at 68F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
