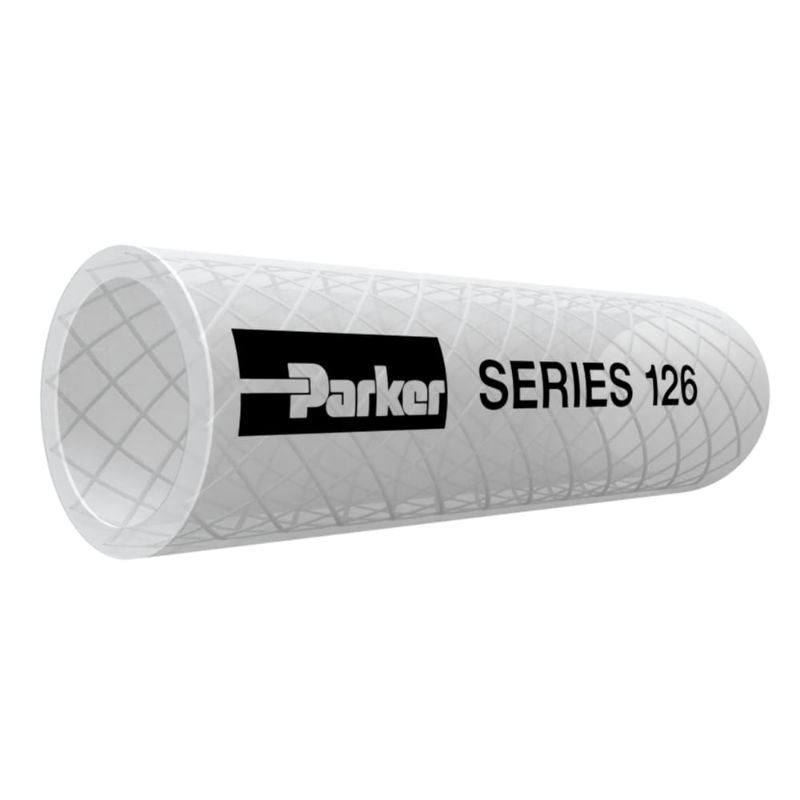

Parker 126-04000300 - NEXBRAID® PVC Clear Heavy Duty General Service Hose, Series 126

Nexbraid PVC Clear Heavy Duty General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 350 psi, Series 126

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 126-04000300

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Weight	0.11 kg/m	Specifications Met	FDA
Media	Food & Beverage	Package Type	Coil
Vacuum Pressure Rating	Light	Hose Inner Tube Material	PVC
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	-5 °C
Outside Diameter	12.7 mm	Cover Color	Blue
Maximum Operating Pressure	350 psi at 68°F	Application	PVC Hose
Cover Material	PVC	Cover Structure	Smooth
Inside Diameter	6.4 mm	Length per Package	300 ft
Minimum Bend Radius	n/a	Hose Reinforcement Material	2 Plies of Textile
Hose I.D. (inch)	1/4	Maximum Working Pressure (psi)	350 at 68F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
