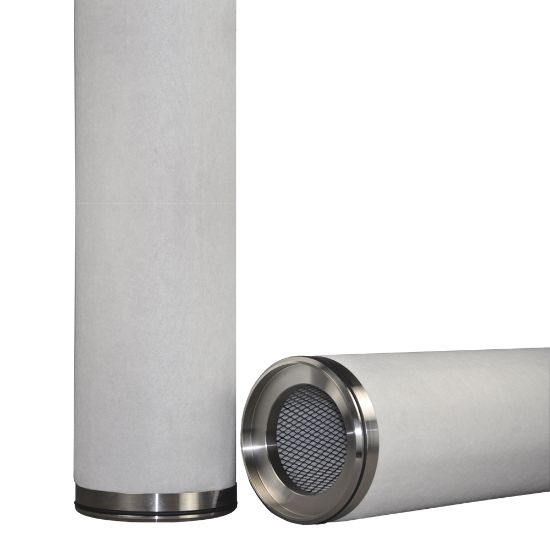

Parker 12178 - P-CEPTOR™ NGGC Gas Coalescer Cartridge

P-Ceptor™ NGGC Gas Coalescers use pleated, treated glass media to provide effective removal of small aerosol mist and liquid droplets from natural gas streams.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12178

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Technology	Filtration	Filter Construction	Pleated
Industry	Oil and Gas	Application	Gas Coalescing
Flow Direction	Inside-to-Outside	Changeout Pressure Differential	12 to 14 psid
Maximum Pressure Differential	25 psid	pH Range	3-9
Micron Rating	PL-51: 99.97% ≥ 0.3 Liquid Droplets	Product Series	NGGC
Filter Material	Glass	Maximum Operating Temperature	240 °F
Quantity per Box	1	Model Number	ELMT NGGC-640-OC-SS-B PL-51
Seal Material	Buna-N	End Cap Material	304SS
Nominal Outside Diameter	6"	Body Material	304SS
Core Material	304SS	Cartridge Length	39.125"
End Cap Configuration	SOE - Closed top, open bottom w/ external 253 o-ring	Nominal Inside Diameter	4"
