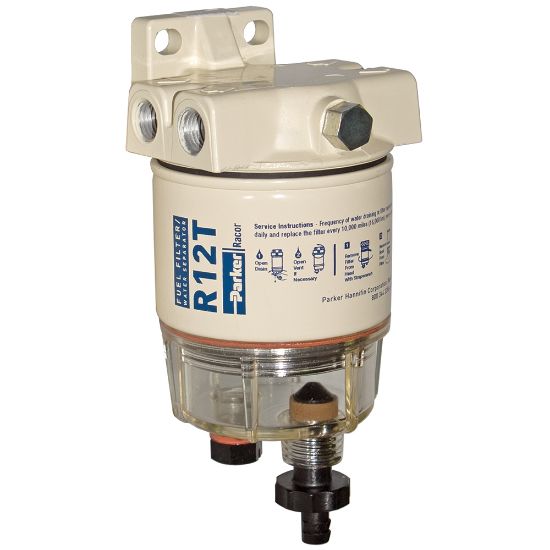

Parker 120AT - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 120AT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Weight	1.2 lb / 0.5 Kg	Product Type	Diesel Spin-on FF/WS
Maximum Operating Pressure	7	Depth	3.2
Width	3.2	Height	6.5
Head Material	Aluminium Alloy	For Fluid Type	Diesel and Gasoline
Number of Ports	2 Inlet / 2 Outlet	Compatible Element	R12S = "2" Micron<br/>R12T = 10 Micron<br/>R12P = 30 Micron
Clean Pressure Drop	0.15	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Location	North America and EMEA regions
Micron Rating	98% @ 10 Micron	Product Series	Diesel Spin-on 100
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Flow Rate	15 gph (57 lph)	Part Type	Filter Assembly
Port Size	1/4" NPTF	Bowl Material	Clear Engineering Plastic
Heater Power Rating	No Heater	Integral Primer Pump Included	No Pump

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--120 Diesel Spin-on--RSL0374 (PDF)
