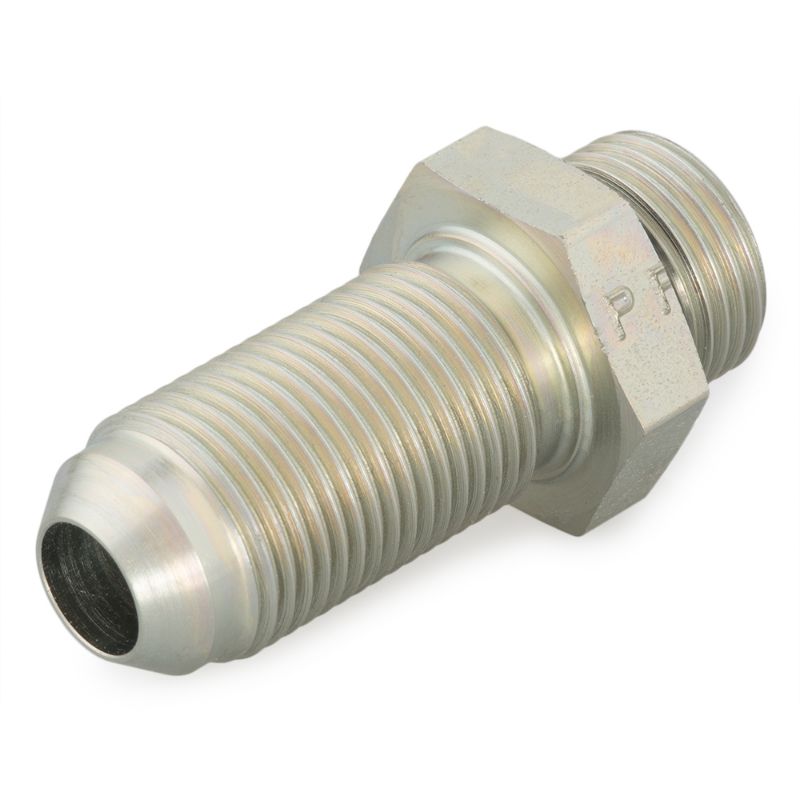

Picture of Parker 12 WF5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 12 WF5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
4 In Stock
Richmond, VA4
Partner Available:80 In Stock
Brand Parker
Part No. 12 WF5OX-S
$66.61
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeStraight
Body MaterialSteelConnection Type37° Flare
O-Ring Material90 Durometer NitrileDimensional Weight0.12464028776978417 lb
Specifications MetSAE J514DivisionTube Fittings Division
Connection 2 Thread Size1 1/16-12 inchConnection 3 Thread Sizena
Maximum Dynamic Pressure5000 psiConnection 1 Tube Outside Diameter3/4 inch
Connection 2 Tube Outside DiameternaConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection 1 SizeMale 37° Flare Bulkhead
Connection 2 SizeMale SAE Straight ThreadConnection 3 Sizena
Connection 4 Sizena
