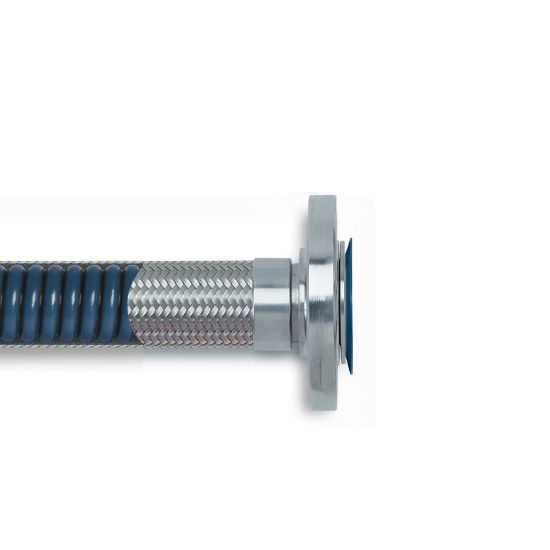

Parker 12-SCBV-FS - Flare-Seal® Heavy Wall Convoluted PTFE Hose

Flare-Seal® assemblies increase flow by providing smooth, clean connections and preventing bacterial entrapment. They are available with a stainless steel braid, polypropylene braid or other optional braids for fluid handling and paint applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12-SCBV-FS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Media	Chemicals (Paint)
Application	Chemical Transfer	Product Style	Static Dissipative
Cover Material	n/a	Compatible Fitting	PAGE Series
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Design Factor	4:1
Vacuum Pressure Rating	28	Maximum Operating Temperature	500
Weight	0.33	Specifications Met	ISO 10993, Sections 5, 6, 10, 11
Hose Reinforcement Material	Braid of 316 Stainless Steel	Minimum Operating Temperature	-100
Size	-12	Inside Diameter	3/4
Outside Diameter	1.050	Minimum Bend Radius	2-3/4
Maximum Operating Pressure	425	Hose Style	Static-Dissipative, Stainless Steel Braid
Hose I.D. (inch)	3/4
