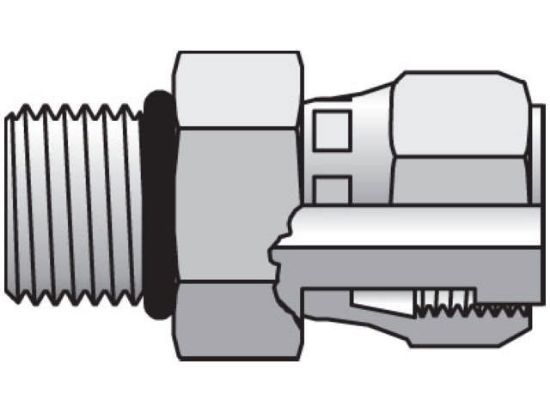

Parker 12 F65L-S - Seal-Lok ORFS Straight Swivel F65OL

Seal-Lok - Straight Thread Swivel Connector ORFS Swivel / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12 F65L-S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Material	Steel	UOM	EA
Pkg Qty/UOM	10 EA	End 1	3/4 Inch
Pkg Qty	10	End 2	1 1/16-12 UN/UNF-2A
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Material	Steel	Inch/Metric	Inch
End 1	3/4 Inch	End 1 Type	Inch
Series	ORFS	Tube Fitting/Adapter Type	ORFS, Seal-Lok O-Ring Face Seal
End 2 Type	UN/UNF-2A	Trade Name	Seal-Lok
End 2	1 1/16-12 UN/UNF-2A	Configuration Type	Straight Swivel
Configuration Sub-Type	Straight Thread Swivel Connector ORFS Swivel / SAE-ORB

Product resources

Seal-Lok O-Ring Face Seal Fittings (PDF)
