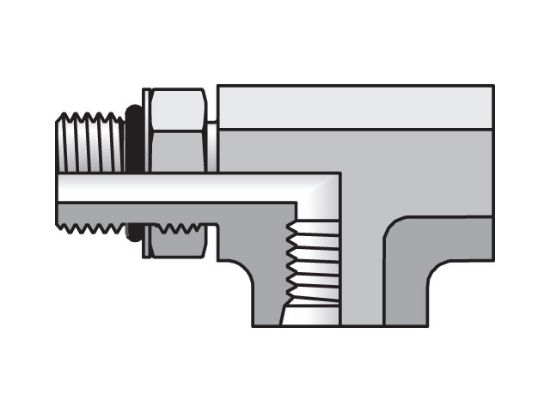

Parker 12 AOG5JG5-S V0894 - Pipe & Port Tee AOG5JG5

Straight Thread Run Tee SAE-ORB (all three ends)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12 AOG5JG5-S V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Material	Steel	Pkg Qty/UOM	25 EA
Pkg Qty	25	UOM	EA
O-Ring/Seal Material	Fluorocarbon	End 2	1 1/16-12 UN/UNF-2B
End 1	1 1/16-12 UN/UNF-2A	End 3	1 1/16-12 UN/UNF-2B
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Material	Steel	Inch/Metric	Inch
Series	Pipe & Port	Tube Fitting/Adapter Type	Pipe & Port
Configuration Type	Tee	End 2 Type	UN/UNF-2B
O-Ring/Seal Material	Fluorocarbon	End 1 Type	UN/UNF-2A
End 2	1 1/16-12 UN/UNF-2B	End 1	1 1/16-12 UN/UNF-2A
Configuration Sub-Type	Straight Thread Run Tee SAE-ORB (all three ends)	End 3	1 1/16-12 UN/UNF-2B
End 3 Type	UN/UNF-2B

Product resources

Pipe Fittings and Adapters (PDF)
