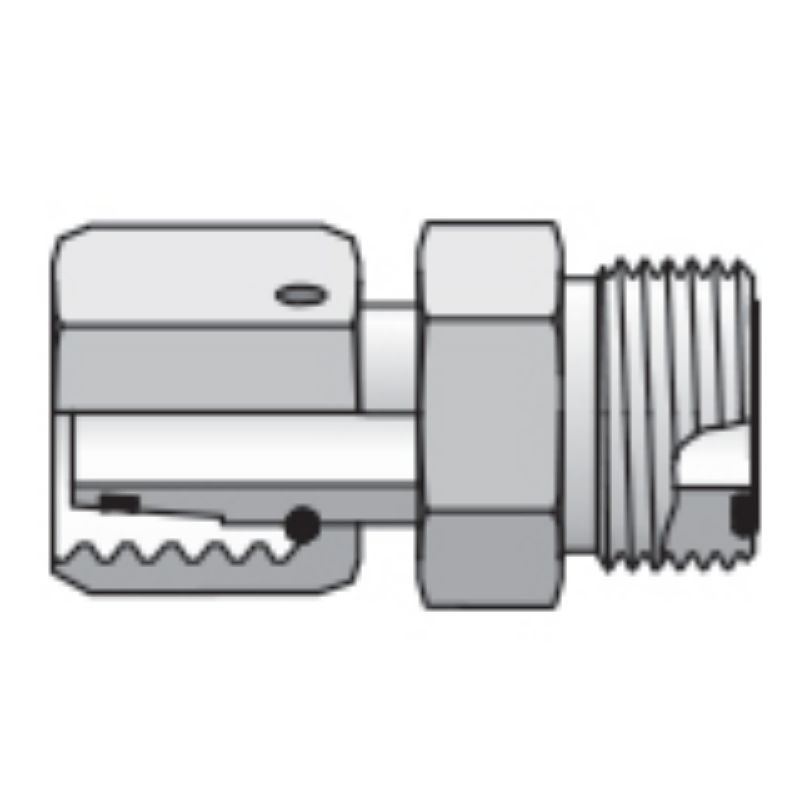

Parker 12-18L LOHU86-S - Conversion Adapters for Tube and Hose Connections

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12-18L LOHU86-S

$68.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	4500 psi	Connection Type	Conversion Adapter
Body Material	Steel	Shape	Straight
Body Material	Steel	O-Ring Material	90 Durometer Nitrile
Connection 1 Tube O.D. (inch)	na	Connection 2 Style	Male O-ring Face Seal
Connection 1 Style	Female Metric Flareless Swivel	Connection 2 Tube O.D. (inch)	3/4
Connection 1 Tube O.D. (mm)	18L
