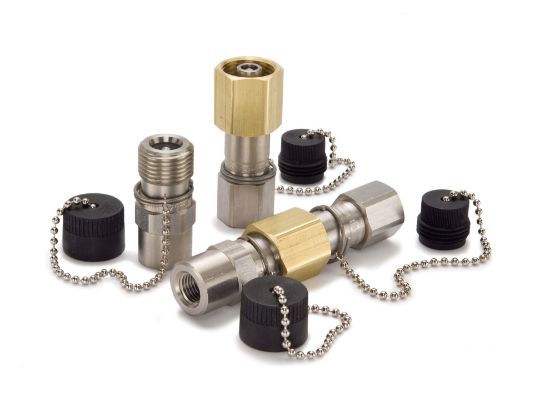

Parker 1141-62-763 - Connect Under Pressure Stainless Quick Couplings - 1141 Series

Parker's high pressure, connect under pressure 1/4" quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1141-62-763

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	10000 psi	Division	Quick Coupling Division
Maximum Operating Temperature	180 °F	Hex Size	0.88
Body Size	1/4 inch	Valve Type	Poppet
Application	Hydraulic high pressure	Product Type	Thread-to-Connect
Body Material	316 Stainless steel body with 316 Stainless steel sleeve	Seal Material	Polyurethane
Connection Type	Female NPTF	Maximum Flow Rate	3 Gal/min
Connection Thread Size	1/4 - 18 inch	Minimum Operating Temperature	-30 °F
Coupling Half	Female Coupler
