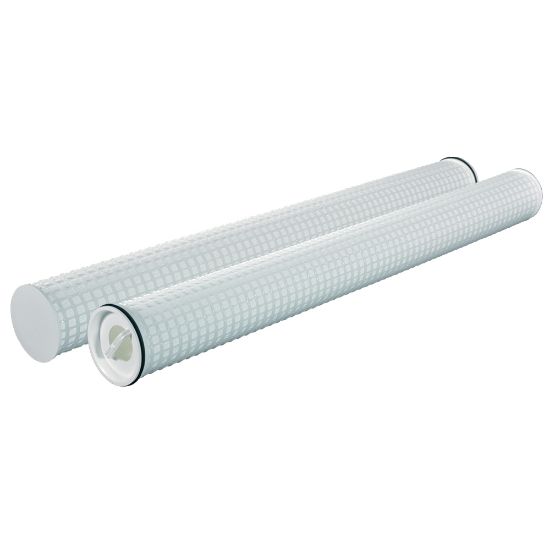

Parker 112160 - PARMAX™ RCP Liquid Filter Cartridge

ParMax™ Series RCP high flow rate filter cartridge for contaminant removal used in a variety of liquid filtration applications. It is available in a NSF/ANSI/CAN 61 certified option suitable for drinking water (EPDM seal only).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 112160

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	Parker
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Industry	Industrial	Technology	Filtration
Application	Liquid Particulate Filtration	Filter Construction	Pleated
Flow Direction	Inside-to-Outside	Changeout Pressure Differential	35 psid
Maximum Pressure Differential	50 psid	Quantity per Box	1.0
End Cap Material	Polypropylene	Product Series	RCP
Minimum Operating Temperature	180 F	pH Range	2-14
Body Material	Polyproyplene	Filter Material	Polypropylene
End Cap Configuration	SOE - Open top w/ handle outer 435 o-ring seal, closed bottom	Nominal Inside Diameter	3"
Nominal Outside Diameter	6.3"	Seal Material	Buna-N
Cartridge Length	60.5"	Model Number	ELMT RCP030-60NPP
Micron Rating	30.0
