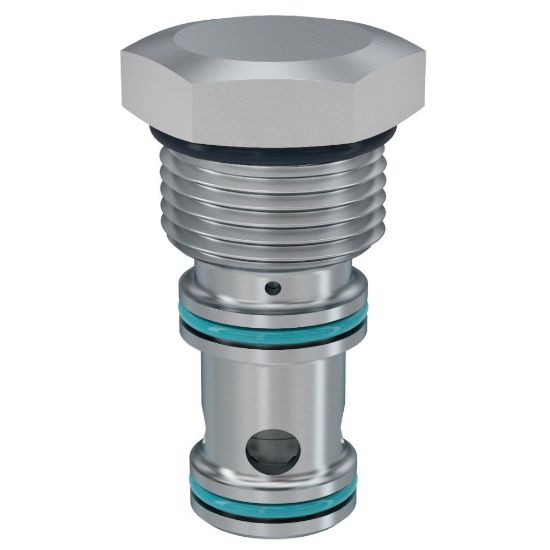

Parker 10SLC2-B-50 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10SLC2-B-50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Maximum Operating Temperature	107 °C
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Vented	External	Weight	0.14 kg
Division	Hydraulic Systems Division	Function	Logic Valve
Leak Rate	82	Cavity Size	C10-3S
Configuration	Normally Closed (NC)	Seal Material	Polyurethane EPS
Actuation Type	Vent to Open	Flow Direction	Nose to Side (1-2)
For Fluid Type	Mineral-based Hydraulic Fluids	Operation Type	Pilot Operated
Pilot Location	Internal	Valve Material	Steel
Maximum Flow Rate	15 Gal/min	Switching Pressure	50 psi
Installation Torque	16 lb-ft	Operating Temperature	-35 to 225 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	3500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Minimum Operating Temperature	-35 °F	Dampening Orifice Included	Yes
Configuration	Normally Closed	Seal Material	Polyurethane EPS
Switching Pressure	50 PSI, 3.5 BAR	Flow Direction	Nose to Side (1-2)
Maximum Flow Rate	15 GAL/MIN, 57 L/MIN	Dampening Orifice Included	Yes
