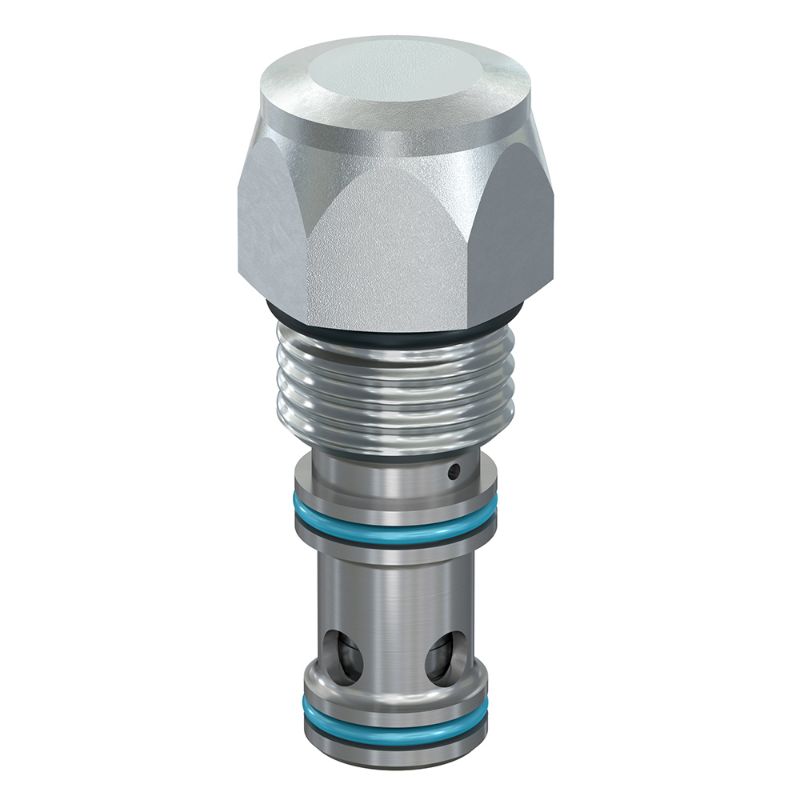

Parker 10SLC2-A-150 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. 10SLC2-A-150

$79.88

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	n/a
Maximum Operating Temperature	107 °C	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Vented	Internal
Weight	0.14 kg	Division	Hydraulic Systems Division
Function	Logic Valve	Leak Rate	82
Cavity Size	C10-3S	Configuration	Normally Closed (NC)
Seal Material	Polyurethane EPS	Actuation Type	Pilot to Close
Flow Direction	Nose to Side (1-2)	For Fluid Type	Mineral-based Hydraulic Fluids
Operation Type	Pilot Operated	Pilot Location	External
Valve Material	Steel	Maximum Flow Rate	15 Gal/min
Switching Pressure	150 psi	Installation Torque	22 Nm
Operating Temperature	-37 to 107 °C	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	240 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	240 bar	Minimum Operating Temperature	-37 °C
Dampening Orifice Included	No	Configuration	Normally Closed
Seal Material	Polyurethane EPS	Switching Pressure	150 PSI, 10.3 BAR
Flow Direction	Nose to Side (1-2)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	No
