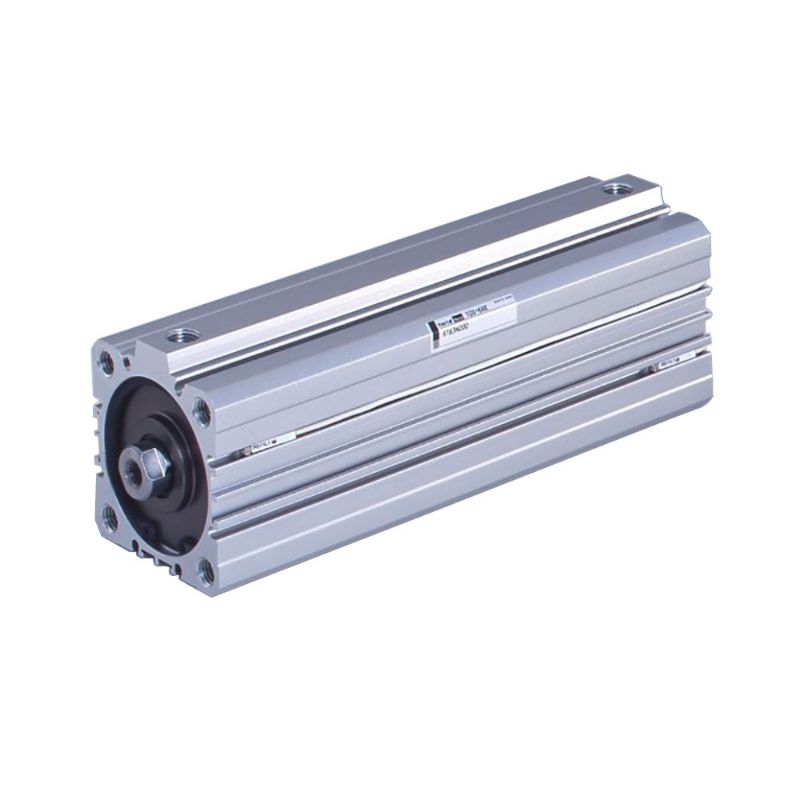

Picture of Parker 10S-6RE-SKU - Compact Design Pneumatic Cylinder(for Long Strokes) Model:10S-6RE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10S-6RE-SKU - Compact Design Pneumatic Cylinder(for Long Strokes) Model:10S-6RE

It is a compact pneumatic cylinder 10S-6RE series with a compact design that supports long strokes. Made-to-order specifications, it also supports rotation-less. Standard stroke is up to 300mm.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 10S-6RE-SKU
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionTAIYO DivisionBody Materialaluminum alloy
Rod End StylesRod eye(T-end),Rod clevis(Y-end)with pinScrew ToleranceJIS 6g/6H
Fluid TypeAirLubricationUnnecessary(But possible)
Proof Pressure (MPa)1.5Rod End Thread TypeFemale thread and male thread
Bore Diameter (mm)32, 40, 50, 63, 80, 100Speed Range30-500mm/s(φ32-40), 30-300mm/s(φ50-100)
Related PartsCB bracket,TA bracket,TB bracketMounting StyleSD(Through holes),ST(tapped on both sides),LA,LB,FA,FB,CA,CB
Cushioning TypeCushion pads on both endsPressure Range (MPa)0.1-1(φ32), 0.05-1(φ40-100)
Temperature Range (C)-10-+70 (No freezing)Stroke Length Tolerance (mm)Stroke of 100 or less:0-+1.0mm Stroke of 101 or more:0-+1.5mm
