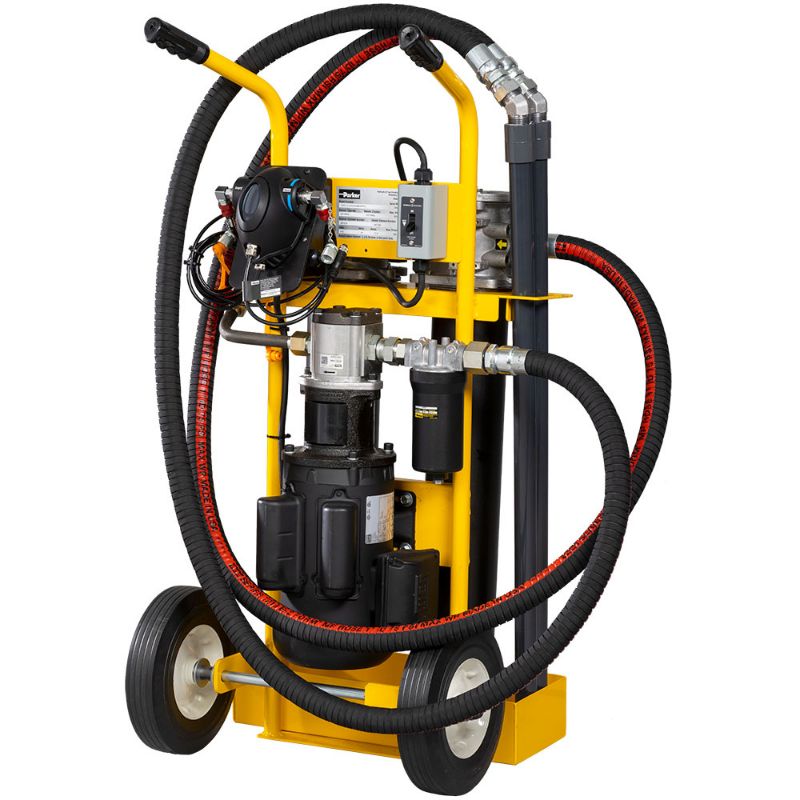

Parker 10PFCC2XXBVPIPDL - Portable Fluid Conditioning Cart

Parker Portable Fluid Conditioning Carts are the most economical way to protect your system from contamination. The Intelli-Cart™ includes the icountPD which provides an excellent method for trending contamination levels and filtering.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10PFCC2XXBVPIPDL

$9,248.34

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Weight	145 lbs (65.8 kg)
Compatible Element	see catalog for options	Electrical Requirements	110/220 volts, 60 Hz Single phase, 10/5.5 amps
Maximum Kinematic Viscosity	215.0 cSt	Maximum Operating Temperature	66.0 °C
Indicator Type	Visual indicator, 3-band (mounted on both stages)	Bypass Option Included	35 PSID (2.4 bar)<br/>(on both elements)
Maximum Pressure Rating	150 psi	Inlet Filter Element	see catalog for options
Outlet Filter Element	see catalog for options	Interface Option	Particle Detector
Maximum Flow Rate	10 gpm (38 lpm)

Product resources

Literature and Reference Materials

Portable Fluid Conditioning Cart Catalog (PDF)
