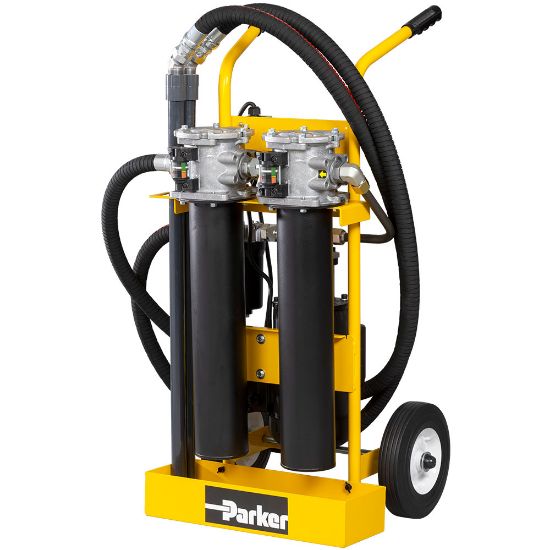

Parker 10PFCC220QWRBVPI1 - Portable Fluid Conditioning Cart

Parker Portable Fluid Conditioning Carts are the most economical way to protect your system from contamination. The Intelli-Cart™ includes the icountPD which provides an excellent method for trending contamination levels and filtering.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10PFCC220QWRBVPI1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Weight	145 lbs (65.8 kg)	Compatible Element	Stage 1 - 937400Q; Stage 2 - 940734
Electrical Requirements	110/220 volts, 60 Hz Single phase, 10/5.5 amps	Maximum Kinematic Viscosity	215.0 cSt
Maximum Operating Temperature	150.0 °F	Indicator Type	Visual indicator, 3-band (mounted on both stages)
Bypass Option Included	35 PSID (2.4 bar)<br/>(on both elements)	Maximum Pressure Rating	10.3 bar
Inlet Filter Element	20Q Microglass	Outlet Filter Element	WR ParGel Water Removal
Interface Option	None	Maximum Flow Rate	10 gpm (38 lpm)

Product resources

Literature and Reference Materials

Portable Fluid Conditioning Cart Catalog (PDF)
