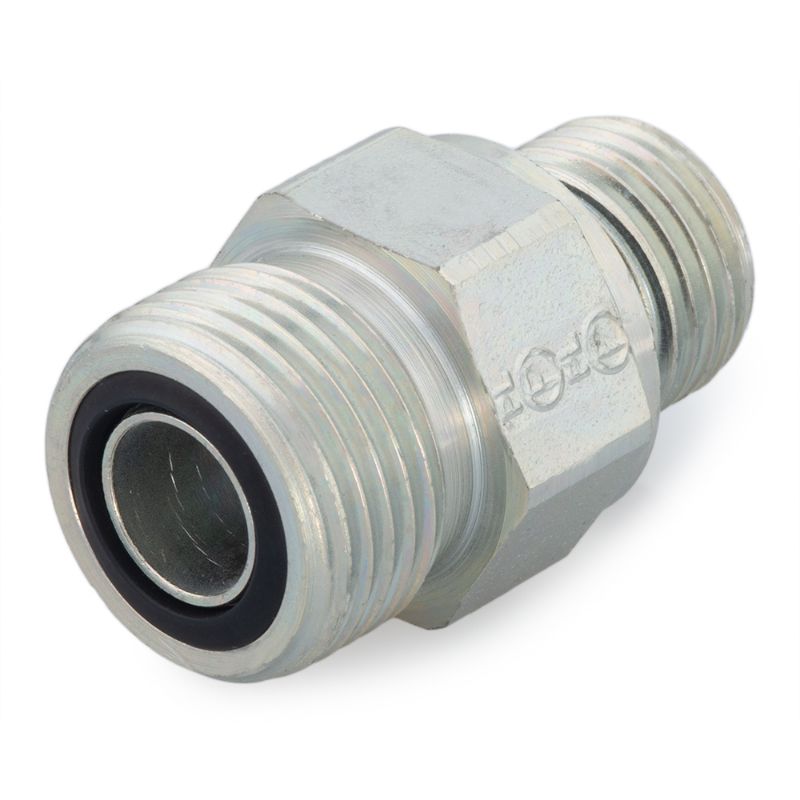

Parker 10M22F82EDMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 10M22F82EDMLOS

$14.74

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Shape	Straight
Dimensional Weight	0.0539568345323741 lb	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Type	na
Connection 4 Type	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection Type	Tube to BSPP-ED	Connection 2 Type	Male BSPP ED Seal
Connection 2 Thread Size	M22x1.5 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
