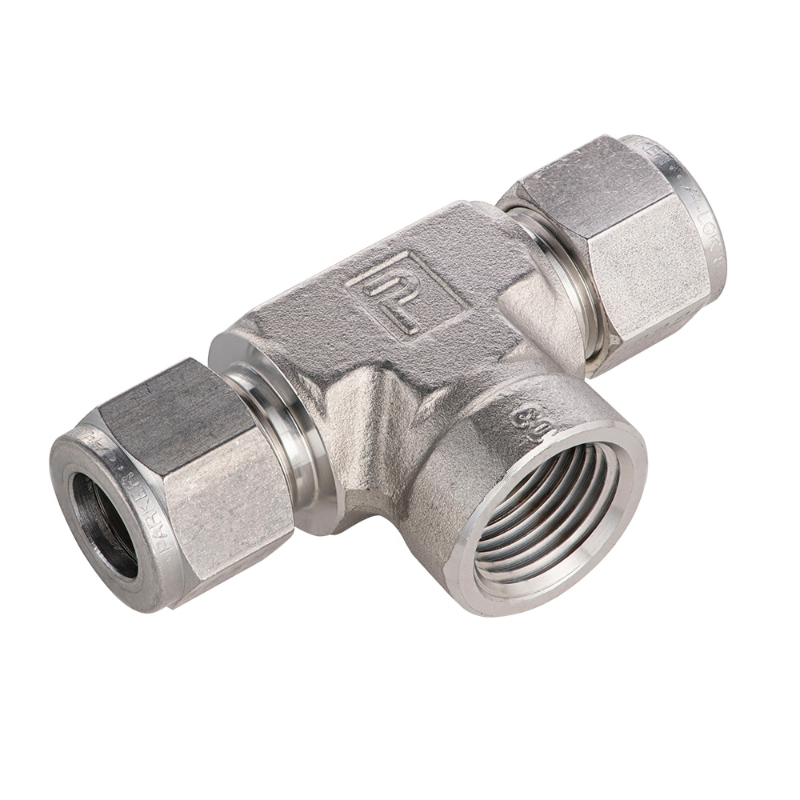

Parker 10FBT8N-316 - Parker Tube Fitting, NPT Female Branch Tee - A-LOK Series

Parker's two ferrule compression fittings, A-LOK® Series NPT Female Branch Tee Tube Fittings are designed for leak-free connections in process instrumentation and industrial applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10FBT8N-316

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Materials of Construction	Stainless Steel AISI 316	Shape	Tee
Industry	Semiconductor	For Fluid Type	Steam
Technology	Process Control	Division	Instrumentation Products Division
Brand	A-LOK	Division	Instrumentation Products Division
Minimum Operating Temperature	-255 °C	Configuration	Tube to Pipe (Female Pipe)
Application	Offshore Control Panels	Maximum Operating Temperature	649 °C
Length	3.06 inch	Operating Pressure	3000 to 6100 psi
Product Style	Female Branch Tee	Specifications Met	N/A
Materials of Construction	Stainless Steel AISI 316	Tube Outside Diameter	5/8" (O.D.)
Connection Thread Size	1/2" NPT

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Training

Literature and Reference Materials, Communities, Blogs & Industry Links, Product Demos & Tutorials, Training

MPI Series Medium Pressure Compression Fitting - Setup and Preset Instruction Bulletin 4234-B1 (PDF)
