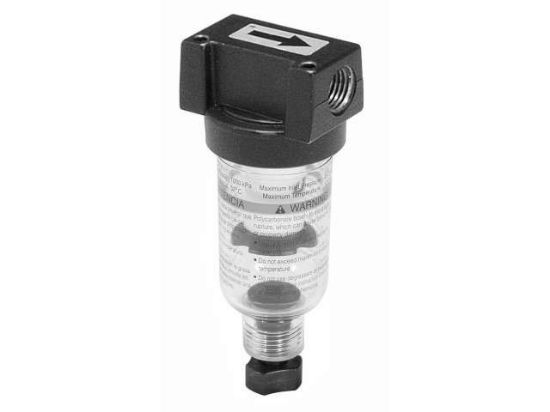

Parker 10F07E - 10F Mini General Industrial Coalescing Filter

10F Mini Prep-Air II Coalescing Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10F07E

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Supply Pressure Range	15 to 250 PSIG (1.0 to 17.2 bar)	Pkg Qty	1
Element Rating	0.01 micron	Maximum Flow	17 SCFM (8 dm3/s)
Filter Drain Type	Auto Pulse	UOM	EA
Port	1/8 NPT	Bowl Type	Metal without sight gauge
Operating Temperature	0°C to 80°C (32°F to 175°F)	Port	1/8 NPT
Element Rating	0.01 micron	Trade Name	Prep-Air II
Parker Division	Pneumatic	Port Inch/BSP	NPT
Operating Temperature	0°C to 80°C (32°F to 175°F)	Filter Drain Type	Auto Pulse
Bowl Type	Metal without sight gauge	Parker Group	Automation
Supply Pressure Range	15 to 250 PSIG (1.0 to 17.2 bar)	Flow Range	< 25 SCFM
Series	10F Mini	Air Preparation Series	General Industrial
Air Preparation Product Type	Coalescing Filter
