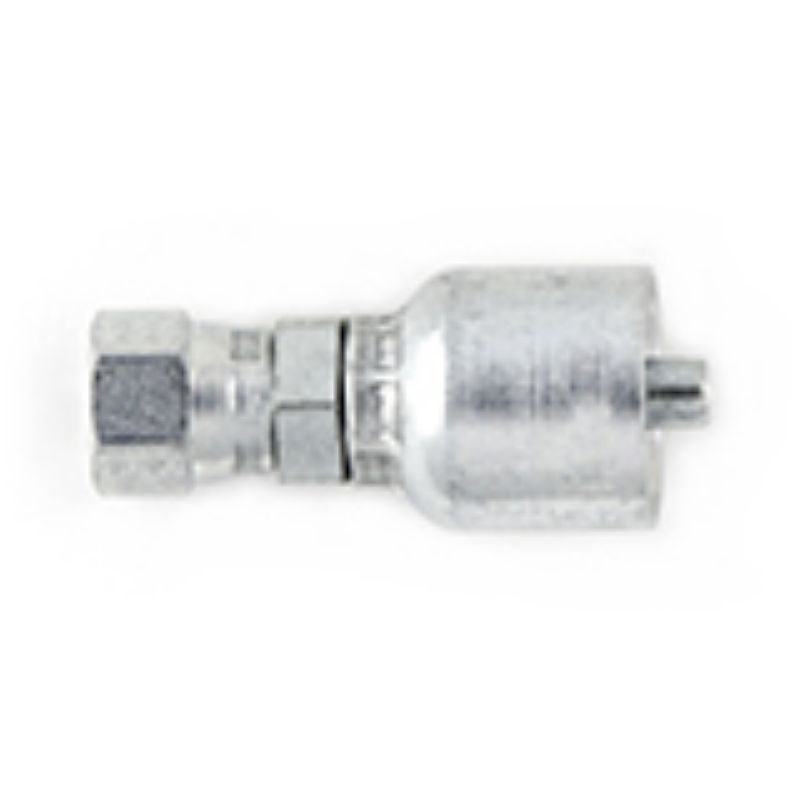

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10C77-25-16 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

AFP Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. 10C77-25-16

$158.52/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose Inside Diameter	-16 (Size)
Connection Size	M36x2.0 mm Thread	Shape	Elbow 45°
Product Style	Female Metric S - Swivel - (24° Cone with O-Ring)	Nut Hex Size	46 mm
Division	Hose Products Division	Flange Size	n/a
Port Size	M25 mm	Banjo Port Diameter	n/a
Back-Up Hex Size	n/a	Materials of Construction	Steel
Materials of Construction	Steel	Hose I.D. (inch)	1"
Shape	Elbow 45°	Product Style	Female Metric S - Swivel (24° Cone with O-Ring)
Port Connection	M25
