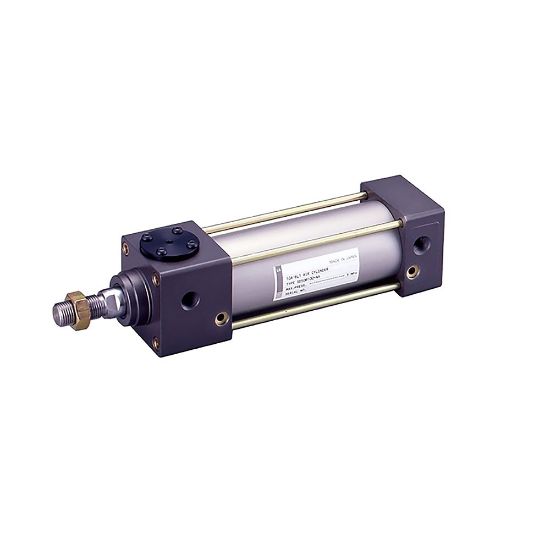

Parker 10A-6L2 - Safety Lock Cylinder Model:10A-6L

Pneumatic cylinder 10A-6L series that securely locks the piston rod in an emergency with a safety lock mechanism. The tie rod construction guarantees long cylinder life with excellent design and quality without trouble.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10A-6L2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	TAIYO Division	Type	With safety lock on cap side type
Fluid Type	Air	Lubrication	Unnecessary(But possible)
Speed Range	30-700mm/s	Related Parts	CB,TC bracket
Mounting Style	SD, LA, LB, FA, FB, CA, CB, CC, TC	Rod End Styles	Rod eye(T-end), Rod eye(S-end) with spherical bearing, Rod clevis(Y-end)with pin, Floating joint (F-end:Do not use together with Mounting style CA,CB,CC and TC accessories.)
Cushioning Type	With cushions on both ends(With needle removal preventing mechanism)	Bellows Material	Nylon tarpaulin(Standard), Chloroprene(Semi-standard), Conex(Semi-standard)
Bore Diameter (mm)	40, 50, 63, 80, 100	Pressure Range (MPa)	0.15-1.0
Temperature Range (C)	-10-70 (No freezing)	Backlash (mm)	1 or less(When locking)
Holding Force (N)	880(φ40), 1374(φ50), 2182(φ63), 3519(φ80), 5498(φ100)	Proof Pressure (MPa)	1.5
