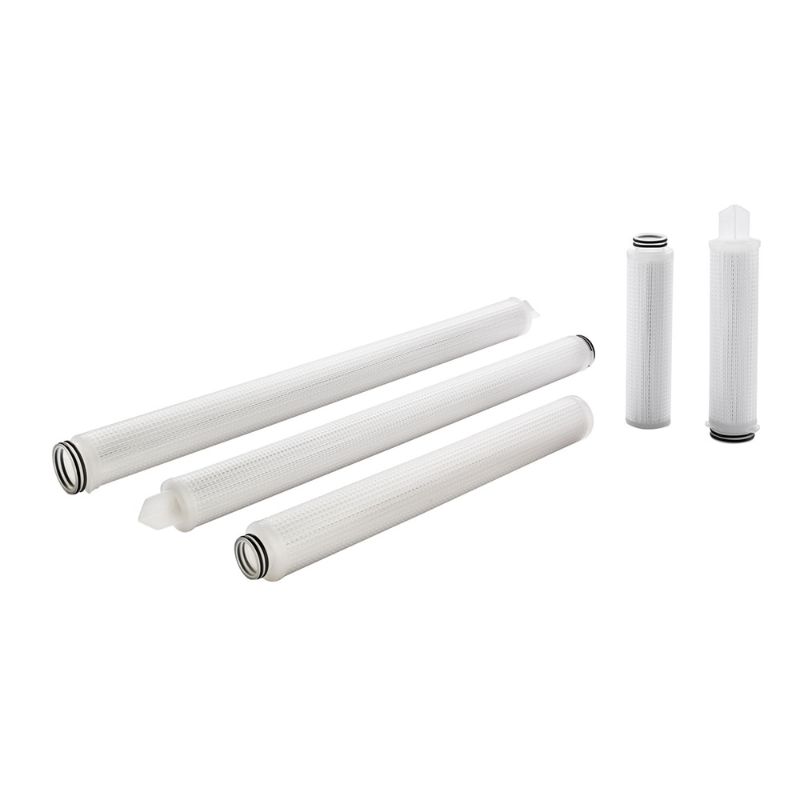

Parker 109534 - GLASS-MATE™ PMG Liquid Filter Cartridge

Glass-Mate™ PMG filter cartridges remove contaminants from a wide range of liquid applications. The pleated style cartridges are made using glass media with outer support. Available from 0.2 to 40 micron rating options with variety of end cap options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 109534

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	Parker
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Industry	Industrial	Technology	Filtration
Application	Liquid Particulate Filtration	Flow Direction	Outside-to-inside
Filter Construction	Pleated	Changeout Pressure Differential	35 psid
pH Range	3-9	Filter Material	Glass with Acrylic
Quantity per Box	6.0	Nominal Inside Diameter	1 inch
Nominal Outside Diameter	2.5 inch	End Cap Configuration	DOE - Double Open End
Maximum Operating Temperature	240 F	Seal Material	Buna-N
Core Material	304 Stainless Steel	Model Number	ELMT PMG004-10GN-DO
Body Material	Polyester Outer Netting	Micron Rating	0.45
Product Series	PMG	Cartridge Length	9.8125"
End Cap Material	Stainless Steel	Maximum Pressure Differential	75 PSID @ 240 F
