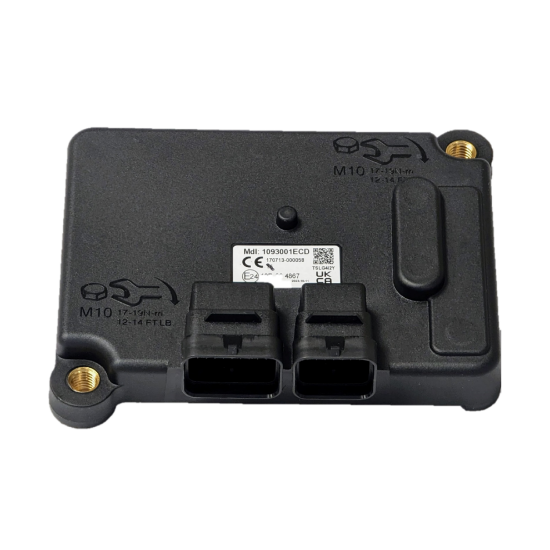

Parker 1093001ECD - Semi-custom Controller Module - CM2723

The CM2723 controller module is a compact solution designed to withstand harsh environments without sacrificing reliability. The CM2723 can be used alone or with other controllers in a system. Available in a 12V version and 24V version.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1093001ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Minimum Operating Temperature	-40
Maximum Operating Temperature	85	Controller Type	Master Controller
Housing Material	Plastic	Electrical Connection	AMP Superseal
Industry	Forestry	Output Current Rating	2.5
Software	C and SDK	Communication Interface	2x CAN (J1939)
Ingress Protection Rating	69K	Number of Outputs	23
Specifications Met	See product brochure for full details	Number of Inputs	28
Power Supply Voltage	24	Version	24
Version	CM2723 24V

Product resources

Literature and Reference Materials
