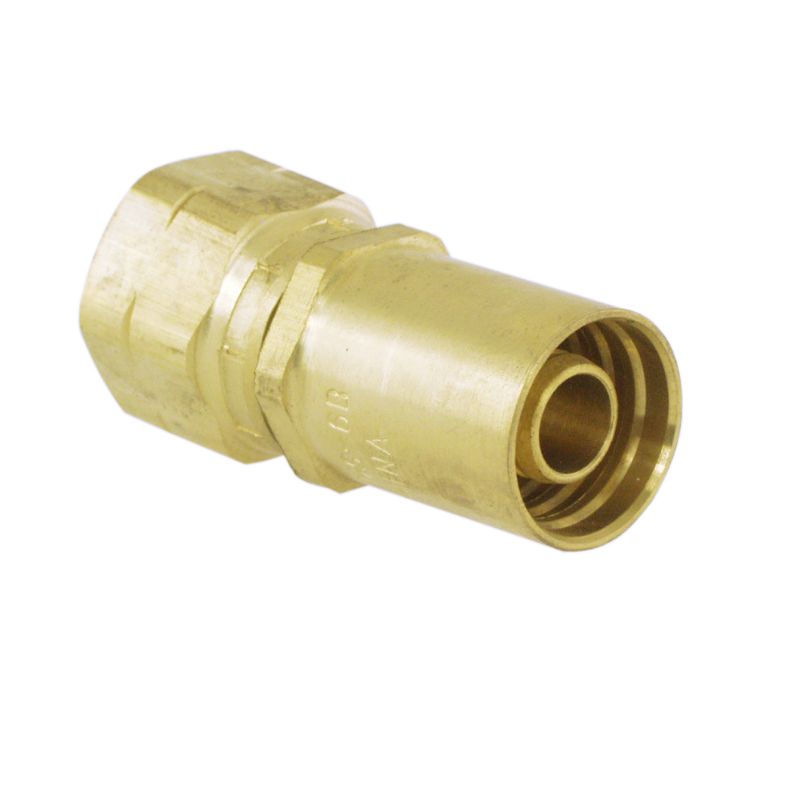

Parker 108MS-6-6B - Marine Hose Fittings – MS Series

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 108MS-6-6B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Body Material	Brass
Shape	Straight	Division	Parflex Division
Specifications Met	N/A	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
Technology	Hydraulics	Hex Size	3/4 inch (see drawing legend H)
Connection 1 Size	3/8 inch Hose I.D.	Coating	n/a
Maximum Operating Pressure	1500 psi (Dependent on hose)	Connection 2 Type	Female
Connection Length	1-1/16 inch Cut-off allowance	Hex Size 2	13/16 inch (see drawing legend J)
Application	Medium Pressure Hydraulics	Fitting Length	1.82
For Fluid Type	Petroleum Hydraulic Fluids	Shape	Straight
Body Material	BRASS	Connection 2 Size	5/8"-18
Connection 2 Type	Permanent Crimp, Female SAE 45° - Swivel	Connection 1 Hose Inside Diameter	3/8 (I.D.)
