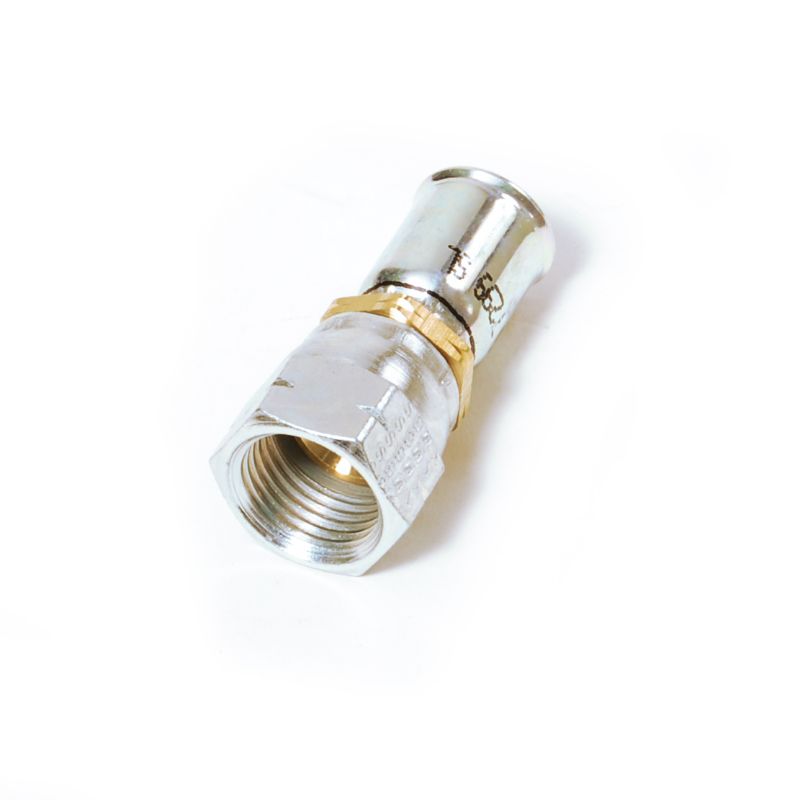

Parker 10891N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 10891N-6-6 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 10891N-6-6
Price: 11.62 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

50 In Stock

Richmond, VA	25
Jacksonville, FL	5
Richmond, VA	4 (Pickup only)
Ashland, VA	2 (Pickup only)
Fayetteville, NC	2
Sumter, SC	2
Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
Knoxville, TN	2
Summerville, SC	2
Mooresville, NC	2

Partner Available:

980 In Stock

Brand Parker

Part No. 10891N-6-6

$11.62/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Industry	General Industrial	Technology	Fluid & Gas Handling
Specifications Met	N/A	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Application	Medical	For Fluid Type	Water
Dimensional Weight	0.0235 lb	Product Series	91N
Body Material	Brass (Nipple)	Connection 1 Size	7.9 mm
Connection Length	1-1/8 inch Cut-off allowance (see drawing legend B)	Maximum Operating Pressure	20.7 MPa
Connection 2 Type	Female	Connection 2 Size	5/8"-18 inch Thread
Coating	Brass (Nipple)	Hex Size	5/8 inch (see drawing legend J)
Hex Size 1	3/4 inch (see drawing legend H)	Fitting Length	44 mm
Hose I.D. (inch)	0.313"	Connection 2 Size	5/8"-18
Length (inch)	1.69"	Product Style	Female NPSM Pipe - Swivel - Straight (60° Cone)
