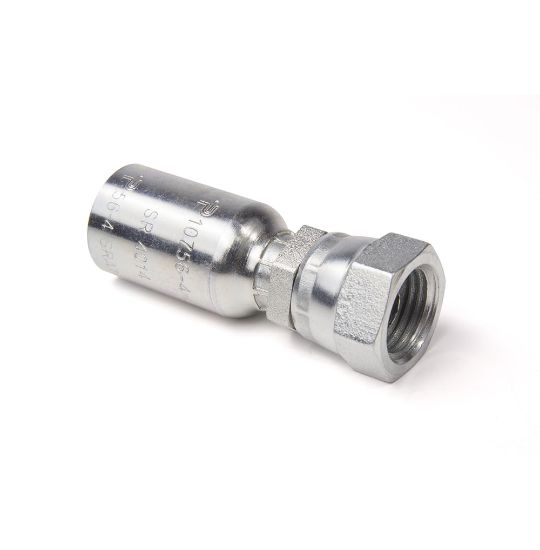

Parker 10756-6-6 - Global Fittings - 56 Series - Inch

Name: Parker 10756-6-6 - Global Fittings - 56 Series - Inch
SKU: 10756-6-6
Price: 19.32 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

31 In Stock

North Chesterfield, VA	26
Summerville, SC	5

Partner Available:

59 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10756-6-6

$19.32/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Type	Female	Connection Length	1-1/8 inch Cut-off allowance
Coating	Chromium 6 Free-plated	Connection 1 Size	9.5 mm Hose I.D.
Hex Size	11/16 inch (see drawing legend H)	Shape	Straight
Division	Parflex Division	For Fluid Type	Air (Pneumatic Media)
Division	Parflex Division	Dimensional Weight	0.0249 lb
Technology	Fluid & Gas Handling	Brand	Parker
Industry	Transportation	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Fitting Length	2.13 inch (see drawing legend A)	Connection 2 Size	3/8"-18 inch Thread
Configuration	Hose to Port	Shipping Weight	0.148 lb
Application	Machine Tools	Hex Size 2	n/a
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hex Size 1	7/8 inch (see drawing legend J)	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Connection 2 Size	3/8"-18
Product Style	Female Pipe Swivel	Length (inch)	2.13"
