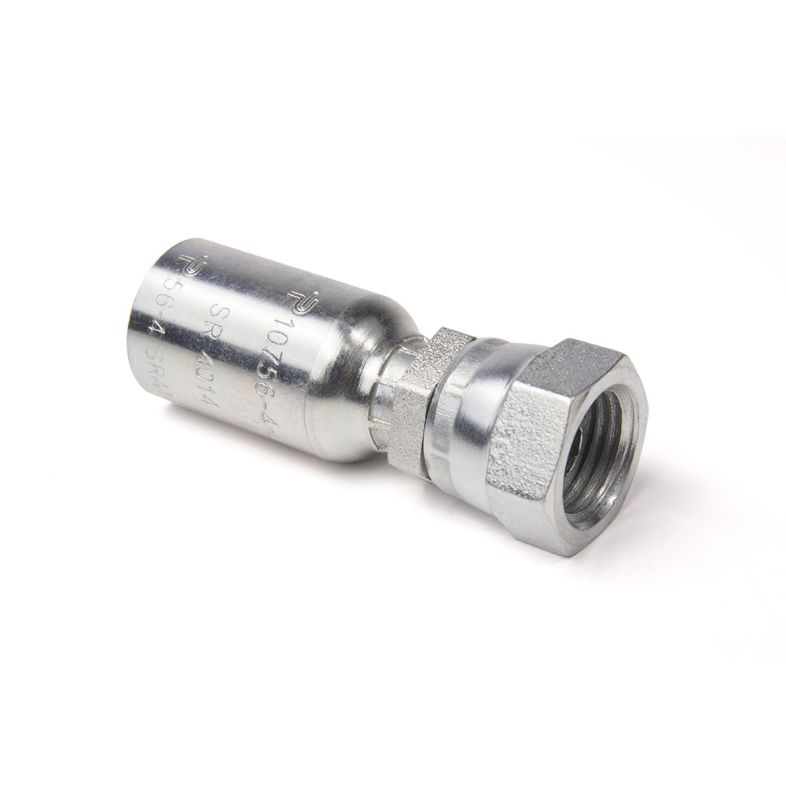

Parker 10756-16-16 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10756-16-16

$125.99

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Industry	Transportation	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	Division	Parflex Division
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Body Material	Steel
Application	Material Handling	For Fluid Type	Air (Pneumatic Media)
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Hex Size	1-3/8 inch (see drawing legend H)
Hex Size 2	n/a	Connection 1 Size	1 inch Hose I.D.
Connection 2 Size	1"-11-1/2 inch Thread	Hex Size 1	1-1/2 inch (see drawing legend J)
Fitting Length	95 mm (see drawing legend A)	Shipping Weight	0.719 lb
Connection 2 Type	Pipe	Connection Length	1-7/8 inch Cut-off allowance
Dimensional Weight	0.0906 lb	Materials of Construction	Steel
Hose I.D. (inch)	1"	Connection 2 Size	1"-11-1/2
Product Style	Female Pipe Swivel	Length (inch)	3.74"
