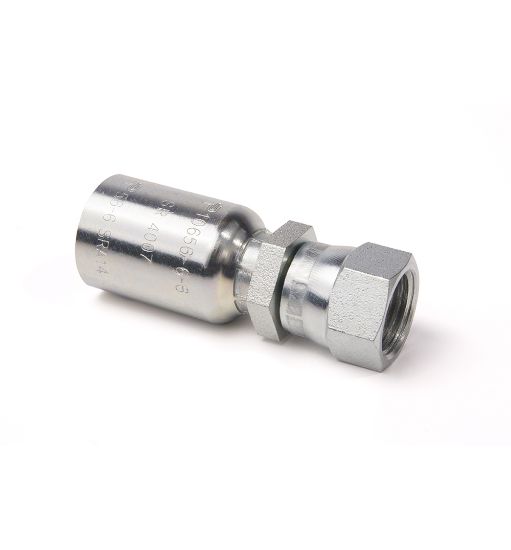

Parker 10656-5-3 - Global Fittings - 56 Series - Inch

Name: Parker 10656-5-3 - Global Fittings - 56 Series - Inch
SKU: 10656-5-3
Price: 24.24 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

6 In Stock

Jacksonville, FL

Partner Available:

40 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10656-5-3

$24.24/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	Connection 1 Size	3/16 inch Hose I.D.
Connection Length	28 mm Cut-off allowance	Body Material	Steel
Hex Size	9/16 inch (see drawing legend H)	Connection 2 Type	Swivel
Configuration	Hose to Port	Dimensional Weight	0.0344 lb
Connection 2 Size	1/2"-20 inch Thread	Fitting Length	1.84 inch (see drawing legend A)
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
Tube Outside Diameter	n/a	Brand	Parker
Industry	Industrial Manufacturing Equipment	Maximum Operating Pressure	5000 psi (Dependent on hose)
Shape	Straight	Division	Parflex Division
Application	Agriculture Equipment	Shipping Weight	0.075 lb
Hex Size 2	n/a	Hex Size 1	5/8 inch (see drawing legend J)
Connection 1 Type	Hose	Materials of Construction	Steel
Product Style	Female JIC 37° - Swivel - Straight	Hose I.D. (inch)	0.188"
Connection 2 Size	1/2"-20	Length (inch)	1.84"
