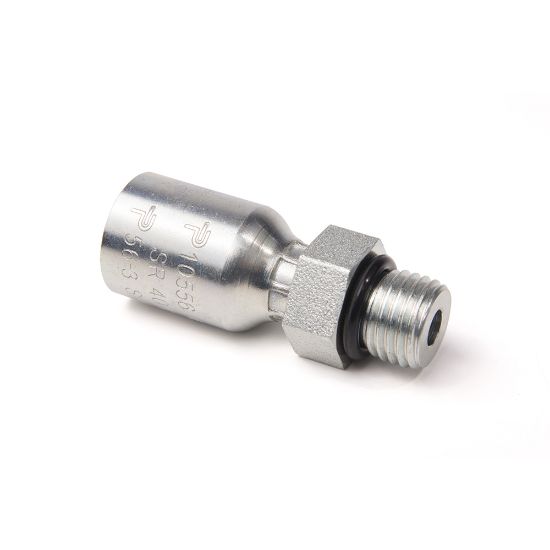

Parker 10556-8-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10556-8-8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Application	Public Works
For Fluid Type	Water	Maximum Operating Pressure	5000 psi (Dependent on hose)
Hex Size	7/8 inch (see drawing legend H)	Hex Size 2	n/a
Connection 1 Size	1/2 inch Hose I.D.	Connection Length	28 mm Cut-off allowance
Dimensional Weight	0.1177 lb	Connection 2 Size	3/4"-16 inch Thread
Body Material	Steel with Nitrile O-Ring	Fitting Length	2.21 inch (see drawing legend A)
Shipping Weight	0.198 lb	Connection 2 Type	SAE
Materials of Construction	Steel	Hose I.D. (inch)	0.5"
Connection 2 Size	3/4"-16	Length (inch)	2.21"
Product Style	Male SAE Straight Thread with O-ring - Rigid - Straight
