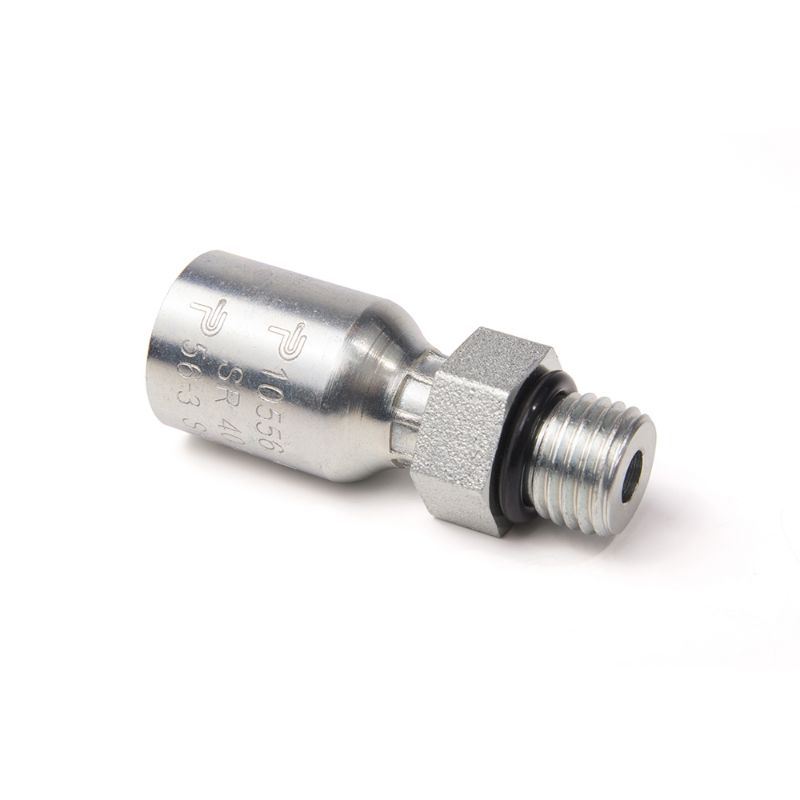

Parker 10556-6-6 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	60 In Stock

Brand Parker

Part No. 10556-6-6

$19.70

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Industry	Industrial Manufacturing Equipment
Application	Construction Equipment	For Fluid Type	Air (Pneumatic Media)
Maximum Operating Pressure	5000 psi (Dependent on hose)	Hex Size	11/16 inch (see drawing legend H)
Hex Size 2	n/a	Connection 1 Size	9.5 mm Hose I.D.
Connection Length	24 mm Cut-off allowance	Dimensional Weight	0.0235 lb
Connection 2 Size	9/16"-18 inch Thread	Body Material	Steel with Nitrile O-Ring
Fitting Length	1.95 inch (see drawing legend A)	Shipping Weight	0.051 kg
Connection 2 Type	Rigid (with O-Ring)	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Connection 2 Size	9/16"-18
Length (inch)	1.95"	Product Style	Male SAE Straight Thread with O-ring - Rigid - Straight
