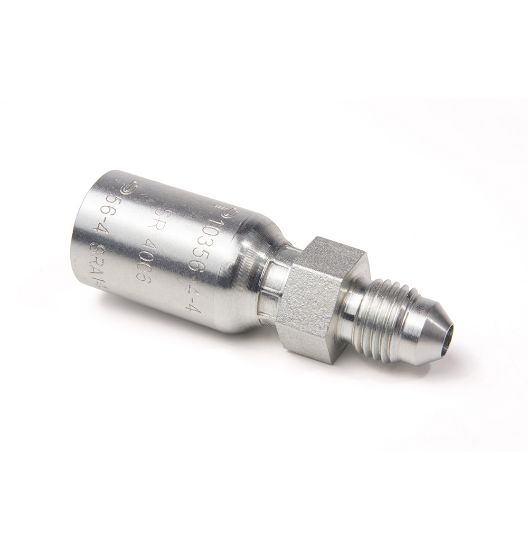

Parker 10456-6-6 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10456-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size 1	n/a	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Body Material	Steel	Industry	Industrial Manufacturing Equipment
Application	Machine Tools	For Fluid Type	Water
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Hex Size	11/16 inch (see drawing legend H)
Hex Size 2	n/a	Fitting Length	2.16 inch (see drawing legend A)
Connection 1 Size	3/8 inch Hose I.D.	Connection Length	30 mm Cut-off allowance
Dimensional Weight	0.0522 lb	Shipping Weight	0.126 lb
Connection 2 Size	5/8"-18 inch Thread	Connection 2 Type	45° Flare SAE
Materials of Construction	Steel	Hose I.D. (inch)	0.5"
Length (inch)	2.16"	Product Style	Male SAE 45° - Rigid - Straight
Connection 2 Size	5/8"-18
