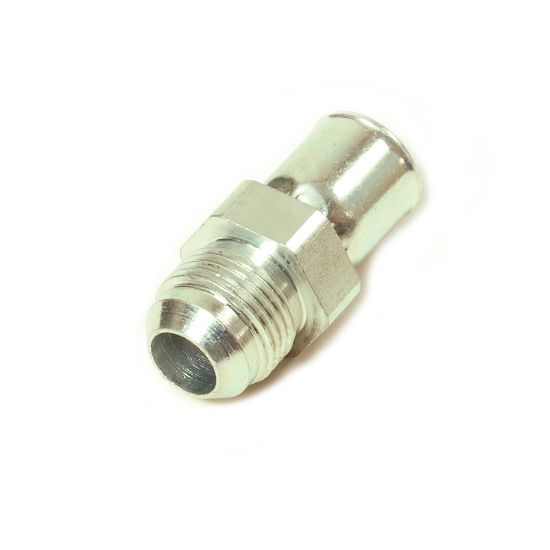

Parker 10391N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10391N-6-6

$39.06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Semiconductor
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Maximum Operating Pressure	3000 psi (Dependent on hose)	Connection 1 Size	5/16 inch Hose I.D.
Product Series	91N	Hex Size	11/16 inch (see drawing legend J)
Industry	Food & Beverage	Body Material	Steel (Shell)
For Fluid Type	Steam	Connection Length	25 mm
Fitting Length	1.64 inch (see drawing legend A)	Connection 2 Size	9/16"-18 inch Thread
Connection 2 Type	JIC 37°	Hose I.D. (inch)	0.313"
Product Style	Male JIC 37° - Rigid - Straight	Length (inch)	1.64"
Connection 2 Size	9/16"-18
