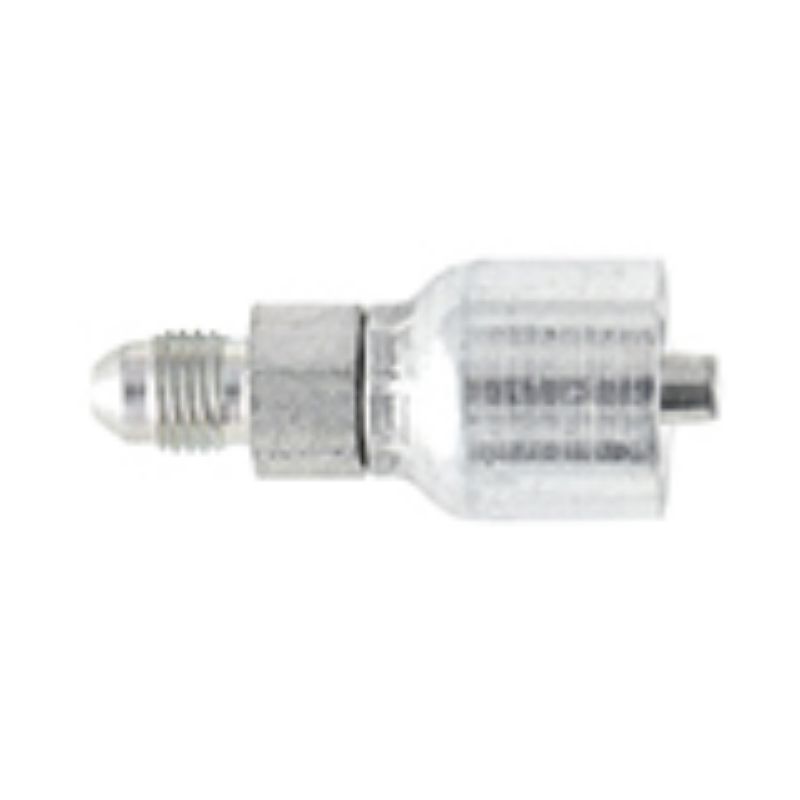

Parker 10377-16-12 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

AFP Availability:	Quote Required
Partner Available:	68 In Stock

Brand Parker

Part No. 10377-16-12

$81.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Back-Up Hex Size	36 mm	Hose Inside Diameter	-12 (Size)
Nut Hex Size	n/a	Connection Size	1-5/16"-12 inch Thread
Port Size	1 inch	Shape	Straight
Product Style	Male JIC 37° - Rigid	Division	Hose Products Division
Flange Size	n/a	Banjo Port Diameter	n/a
Shape	Straight	Materials of Construction	Steel
Hose I.D. (inch)	3/4"	Port Connection	1"
Product Style	Male JIC 37° - Rigid

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide--B.1 (PDF)
