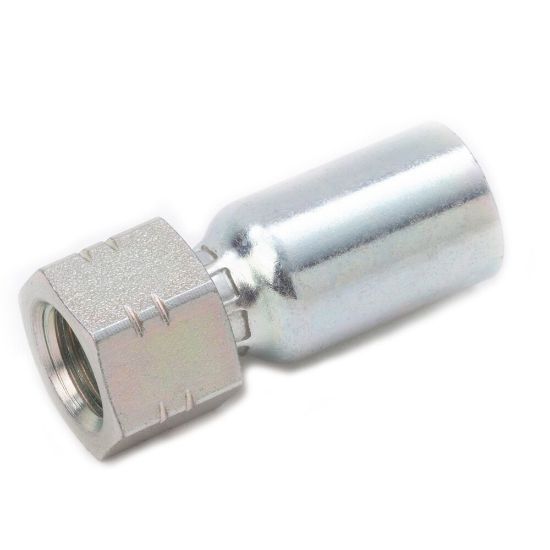

Picture of Parker 10356-5-4 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10356-5-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Quote Required
Partner Available:54 In Stock
Brand Parker
Part No. 10356-5-4
$41.58
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABrandParker
ShapeStraightDivisionParflex Division
TechnologyFluid & Gas HandlingCoatingChromium 6 Free-plated
DivisionParflex DivisionHex Size 1n/a
ConfigurationHose to PortConnection 1 TypeHose
Tube Outside Diametern/aBody MaterialSteel
IndustryIndustrial Manufacturing EquipmentApplicationMachine Tools
For Fluid TypeWaterMaximum Operating Pressure34.5 MPa (Dependent on hose)
Hex Size9/16 inch (see drawing legend H)Hex Size 2n/a
Connection 1 Size6.35 mm Hose I.D.Connection 2 TypeRigid
Connection Length28 mm Cut-off allowanceDimensional Weight0.0235 lb
Fitting Length2.10 inch (see drawing legend A)Shipping Weight0.039 kg
Connection 2 Size1/2"-20 inch ThreadMaterials of ConstructionSteel
Hose I.D. (inch)0.25"Product StyleMale JIC 37° - Rigid - Straight
Length (inch)2.1"Connection 2 Size1/2"-20
