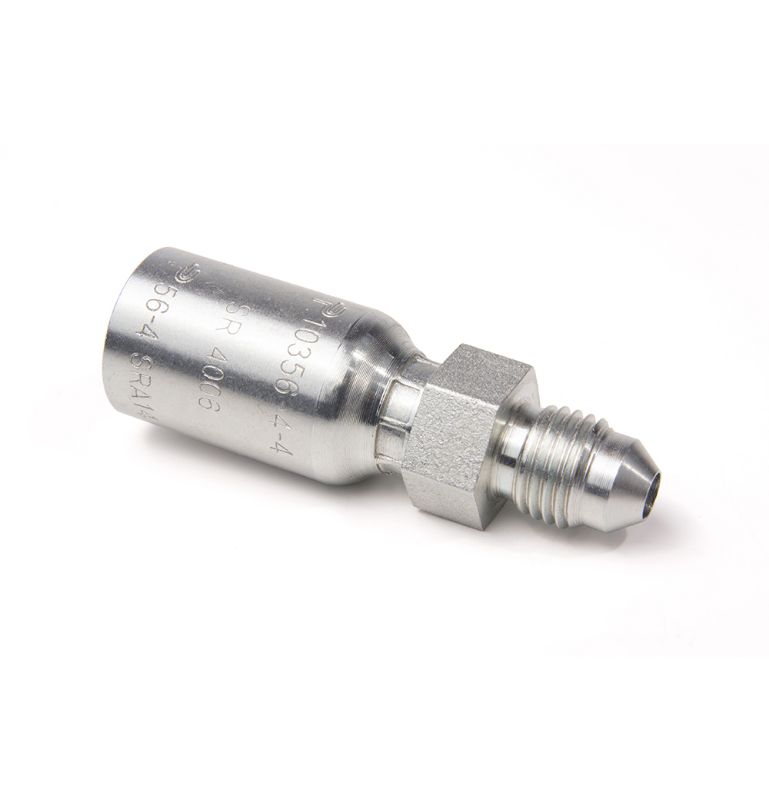

Parker 10356-12-10 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10356-12-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Technology	Fluid & Gas Handling
Connection 2 Type	Male	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Configuration	Hose to Port	For Fluid Type	Hydraulic Fluids
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Body Material	Steel	Application	Public Works
Industry	Off-road Machinery	Maximum Operating Pressure	5000 psi (Dependent on hose)
Hex Size	1-1/8 inch (see drawing legend H)	Hex Size 2	n/a
Fitting Length	2.97 inch (see drawing legend A)	Connection 1 Size	5/8 inch Hose I.D.
Shipping Weight	0.355	Connection 2 Size	1-1/16"-12 inch Thread
Connection Length	1-5/8 inch Cut-off allowance	Materials of Construction	Steel
Hose I.D. (inch)	0.625"	Length (inch)	2.97"
Product Style	Male JIC 37° - Rigid - Straight	Connection 2 Size	1-1/16"-12
