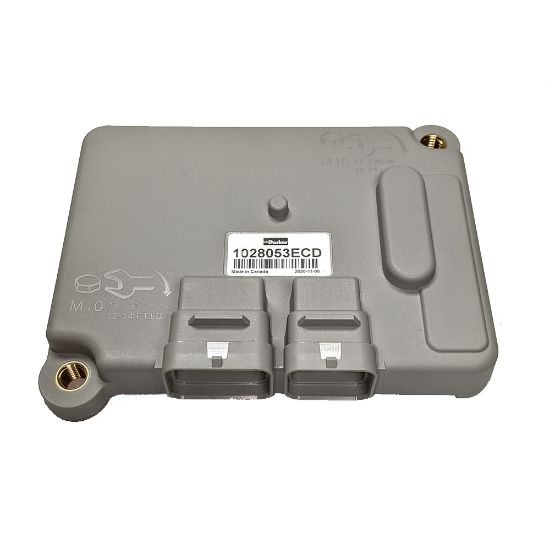

Parker 1028053ECD - Semi-custom Controller Module - CM2723

The CM2723 controller module is a compact solution designed to withstand harsh environments without sacrificing reliability. The CM2723 can be used alone or with other controllers in a system. Available in a 12V version and 24V version.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1028053ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	85 °C	Industry	Material Handling
Controller Type	Master Controller	Housing Material	Plastic
Electrical Connection	AMP Superseal	Software	C and SDK
Number of Inputs	27	Communication Interface	2x CAN (J1939)
Ingress Protection Rating	69K	Version	12 V
Number of Outputs	23	Specifications Met	See product brochure for full details
Power Supply Voltage	12 V	Output Current Rating	3.4 A
Version	CM2723 12V
