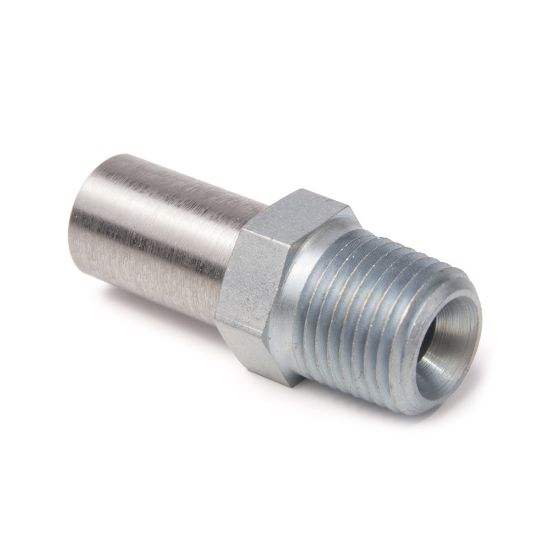

Parker 101SF-2-1 - Permanent Crimp Fittings - SF Series

Parker permanent crimp fittings – SF series are qualified for use with 56DH/568DH Diagnostic hose with a -1.5 (.09”) I.D.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 101SF-2-1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Shape	Straight	Materials of Construction	Steel
Division	Parflex Division	Product Style	Male NPTF Pipe - Rigid - Straight
Connection Type	Pipe	Connection Size	1/8"-27 inch Thread
Port Size	1/8 inch	Length	1.13 inch
Hose Inside Diameter	0.09 inch	Dimensional Weight	0.0119 lb
Product Style	Male NPTF Pipe - Rigid - Straight	Port Connection	1/8"
Hose I.D. (inch)	0.09"
