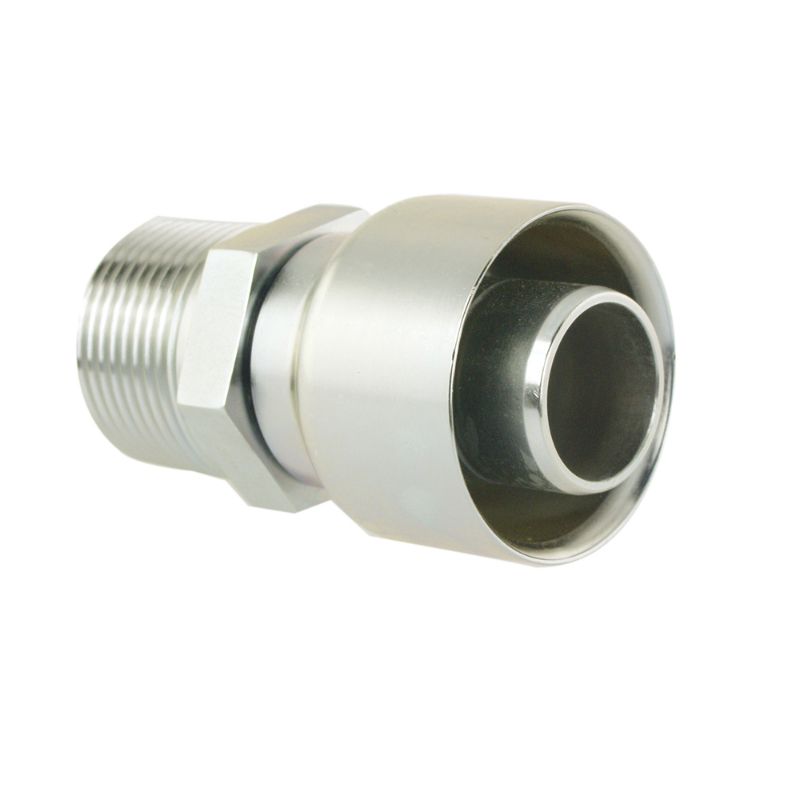

Parker 10193N-16-16 - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Availability:	Quote Required
Partner Available:	75 In Stock

Brand Parker

Part No. 10193N-16-16

$90.30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Application	Chemical Transfer	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size 1	n/a	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Size	-16 (Size)
Connection 1 Type	Hose	Body Material	Steel
Hex Size	1-3/8 inch (see drawing legend H)	Connection 2 Size	1"-11-1/2 inch Thread
Product Series	93N	Industry	Industrial Processing
Fitting Length	3.03 inch (see drawing legend A)	For Fluid Type	Steam
Connection Length	1-13/16 inch Cut-off allowance (see drawing legend B)	Maximum Operating Pressure	103.0 bar
Product Style	Male NPTF Pipe - Rigid	Hose I.D. (inch)	1"
Connection 2 Size	1"-11-1/2	Length (inch)	3.03"
