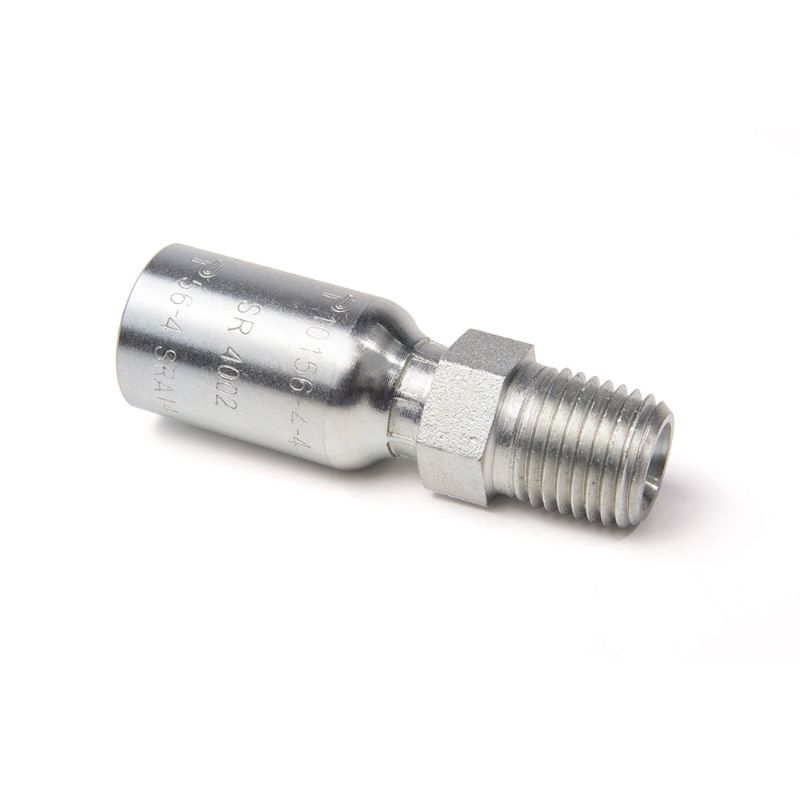

Parker 10156-2-2 - Global Fittings - 56 Series - Inch

Name: Parker 10156-2-2 - Global Fittings - 56 Series - Inch
SKU: 10156-2-2
Price: 14.86 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

189 In Stock

Norfolk, VA	97
Richmond, VA	58
Richmond, VA	10 (Pickup only)
Knoxville, TN	9
Knoxville, TN	8
Johnson City, TN	6 (Pickup only)
Summerville, SC	1

Partner Available:

575 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10156-2-2

$14.86/each

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Brand	Parker
Industry	Industrial Manufacturing Equipment	Connection 2 Size	1/8"-27 inch Thread
Configuration	Hose to Port	Dimensional Weight	0.0113 lb
Fitting Length	34 mm (see drawing legend A)	Hex Size 2	n/a
Hex Size 1	n/a	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Connection 1 Size	3 mm Hose I.D.
Hex Size	1/2 inch (see drawing legend H)	Body Material	Steel
Connection 2 Type	Male	Connection Length	19 mm Cut-off allowance
Coating	Chromium 6 Free-plated	Shape	Straight
Division	Parflex Division	Shipping Weight	0.042 lb
Application	Machine Tools	Division	Parflex Division
For Fluid Type	Air (Pneumatic Media)	Technology	Fluid & Gas Handling
Materials of Construction	Steel	Product Style	Male NPTF Pipe - Rigid - Straight
Length (inch)	1.35"	Hose I.D. (inch)	0.125"
Connection 2 Size	1/8"-27
