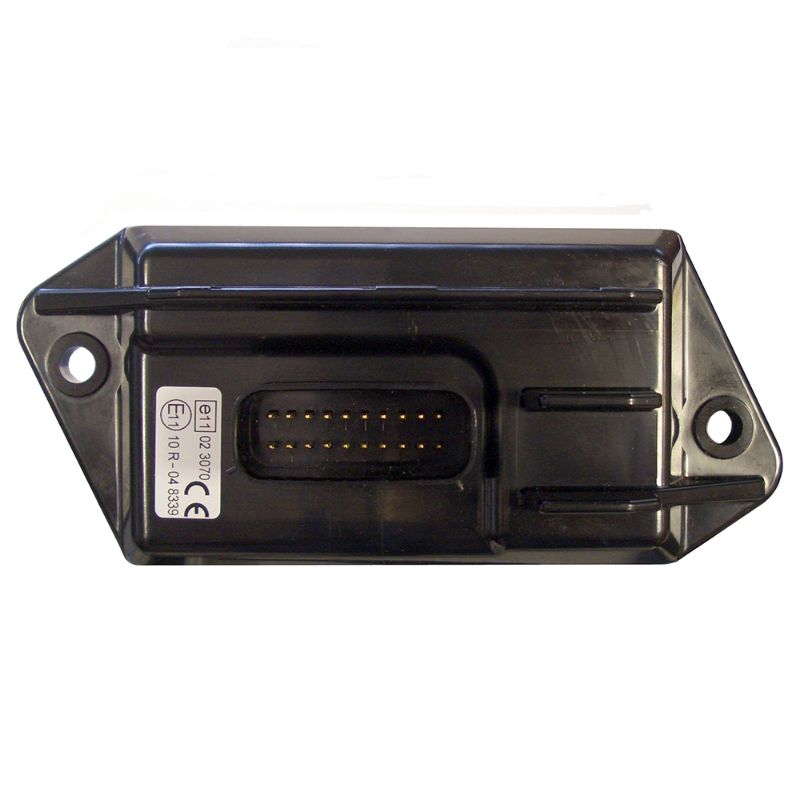

Parker 1014001ECD - J1939 Slave Controller Module - CM0410

Parker's CM0410 controller module is a compact J1939 slave unit that features configurable I/O using a supplied PC tool. The CM0410 module reports input status and receives output commands from a master using J1939 protocol over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1014001ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Industry	Transportation
Specifications Met	2004/108/EC	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-40 °C	Software	Preconfigured
Controller Type	Slave/Expansion Module	Housing Material	Plastic
Number of Inputs	4	Number of Outputs	10
Power Supply Voltage	24 V	Electrical Connection	Molex MX150
Output Current Rating	2 A	Communication Interface	1x CAN (J1939)
Ingress Protection Rating	69K	Model Number	CM0410 J1939 slave
