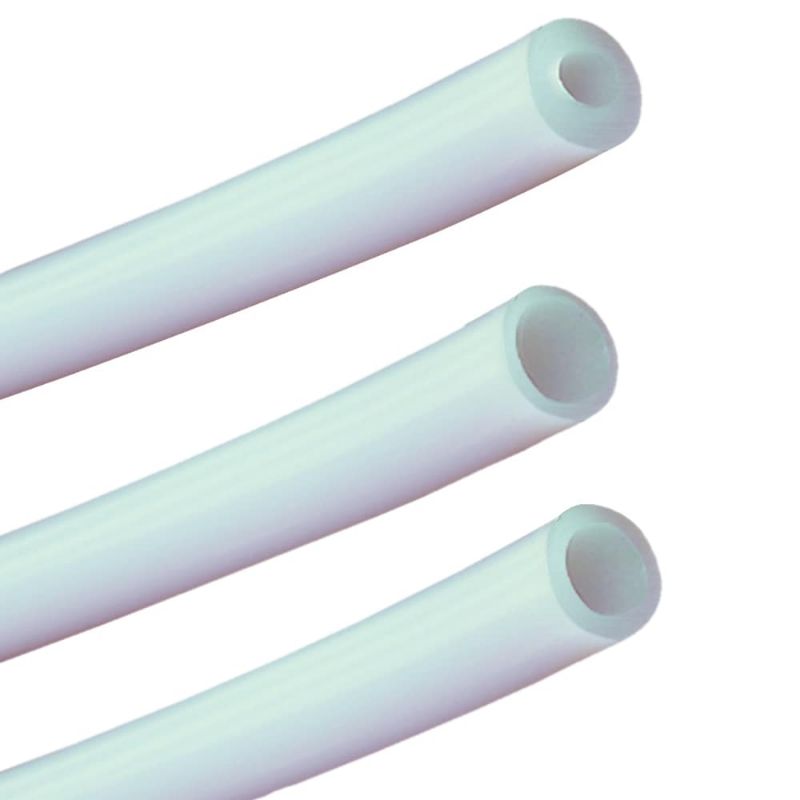

Parker 101-0500062-NT-50 - PTFE Tubing

PTFE Tubing – Series 101/201 is a high temperature tubing operating up to 500°F/260°C. Fluoroplastic tubing is chemically inert, corrosion resistant, and features the lowest coefficient of friction of any tubing.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 101-0500062-NT-50

$10.88/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Parflex Division
Maximum Operating Temperature	260 °C	Size	1/2 inch
Minimum Burst Pressure	36 bar	Media	Chemicals
Compatible Fitting	Compress-Align®	Color	Natural
Tube Inside Diameter	0.375 inch	Minimum Bend Radius	2-1/4 inch
Tube Material	Polytetrafluoroethylene (PTFE)	Specifications Met	FDA compliant 21 CFR 177.1550
Maximum Operating Pressure	9 bar	Length per Package	50 ft
Weight	0.119 kg/m	Tube Outside Diameter	12.7 mm
Minimum Operating Temperature	-75 °C	Application	Fluid Handling
Order Size	1/2	Product Type	Heavy Wall
Tube Wall Thickness	0.062	Tube Inside Diameter	.375
Standard Pack Qty (ft)	50.0	Tube Outside Diameter	.500
