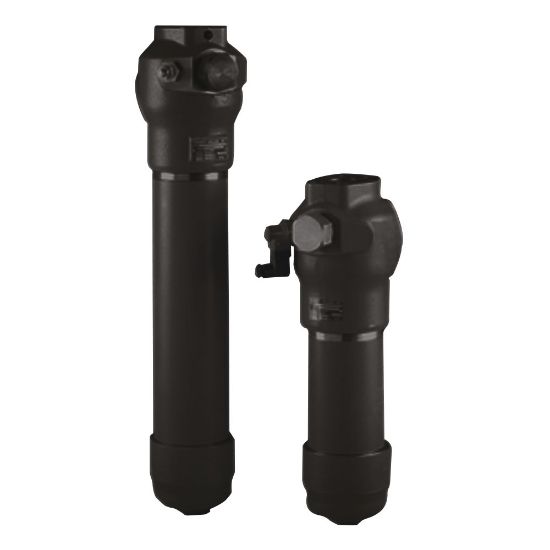

Parker 100P105QBT2MF321 - High Pressure In-Line Filter - 100P Series

The 100P Series high pressure in-line filters have been designed so only the end cap of the bowl needs to be removed in order to change the element making it ideal for applications where space is at a premium.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 100P105QBT2MF321

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Industrial Manufacturing Equipment	Technology	Filtration
Application	Test Rigs	Product Type	Hydraulic Filter
Micron Rating	20 MICRON	Mounting Type	Inline
For Fluid Type	Hydraulic Oil	Product Series	100P Series
Housing Material	Cast Iron / Steel	Operating Pressure	414 bar
Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.	Division	Hydraulic & Industrial Process Filtration Division EMEA
Operating Temperature	-40 to 100 °C	Indicator Pressure Setting	7 bar
Options	Standard	Flow Rate	600 l/min
Seal Material	Nitrile	Filter Element	05Q Microglass
Indicator Type	Electrical NO/NC	Port Connection Type	2" SAE-6000
