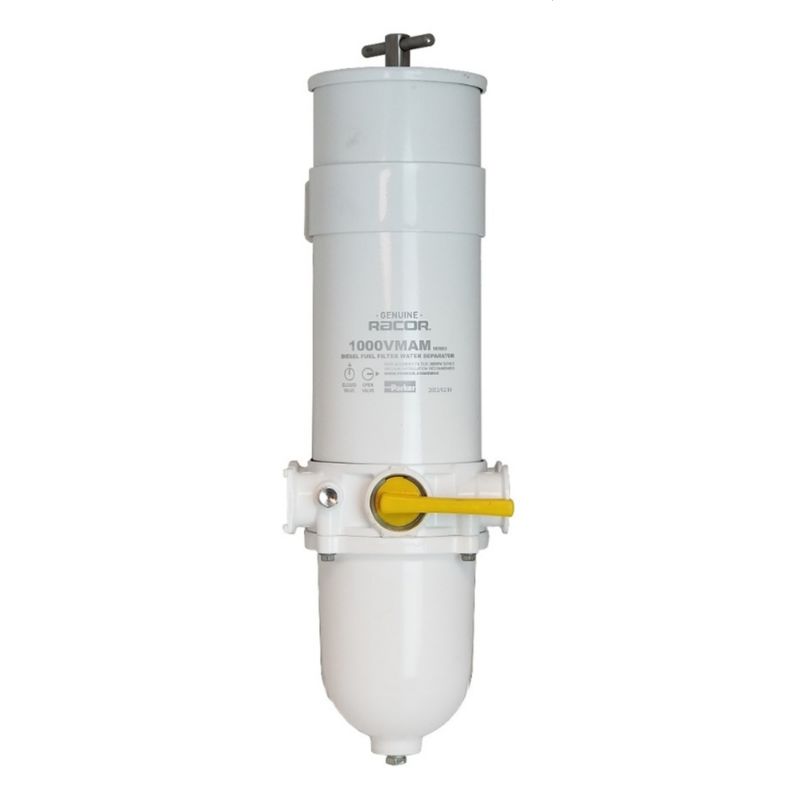

Parker 1000VMA10 - Marine Fuel Filter Water Separator – Racor Turbine Series

The Racor Marine Fuel Filter Water Separator Turbine Series is a UL-approved filtration system that offers maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 1000VMA10

$858.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Series or Model Replaced	Replaces all 1000MA
Connection Type	1 5/16”-12 UN-2B (SAE 1926-1) 2X 3/4” NPTF Adapters Supplied 2X Port Plugs Supplied	Division	Engine Mobile Original Equipment Division
Catalog Number	See RSL0429	Brand	Racor
Application	Marine Filtration	Location	North America and EMEA regions
Flow Rate	180 gph (681 lph)	Part Type	1000 Marine Single Turbine Assembly
Micron Rating	98% @ 10 Micron	Bowl Type	Bowl: Clear Engineering Plastic with Stainless Steel Shield
Valve Type	Integrated Isolation Valve	Product Type	Turbine Marine Filter Housing

Product resources

Literature and Reference Materials

Selector Guides

Racor - Cut Sheet - 900/1000VMA-VMAM - RSL0429 (PDF)
