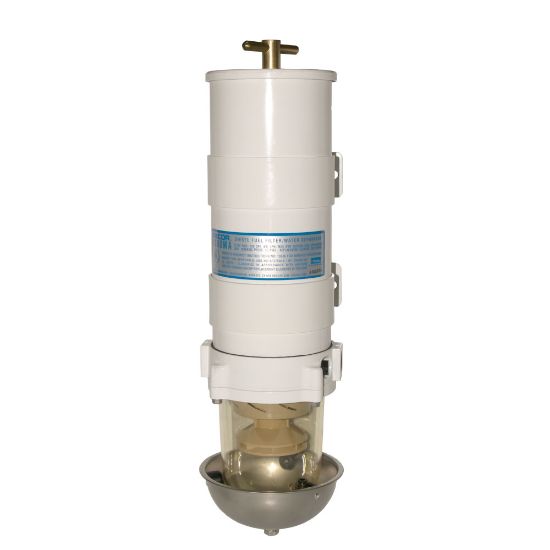

Parker 1000MAP10 - Marine Fuel Filter Water Separator – Racor Turbine Series

The Racor Marine Fuel Filter Water Separator Turbine Series is a UL-approved filtration system that offers maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1000MAP10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Connection Type	7/8"-14 UNF-2B Female	Application	Marine Filtration
Catalog Number	See RSL0429	Series or Model Replaced	Replaced by 1000VMA10
Location	North America and EMEA regions	Flow Rate	180 gph (681 lph)
Product Type	OBSOLETE Marine Turbine Housing	Micron Rating	98% @ 10 Micron
Bowl Type	Bowl: Clear Engineering Plastic with Stainless Steel Shield	Valve Type	None
Part Type	1000 Marine Single Turbine Assembly with Water Probe

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
