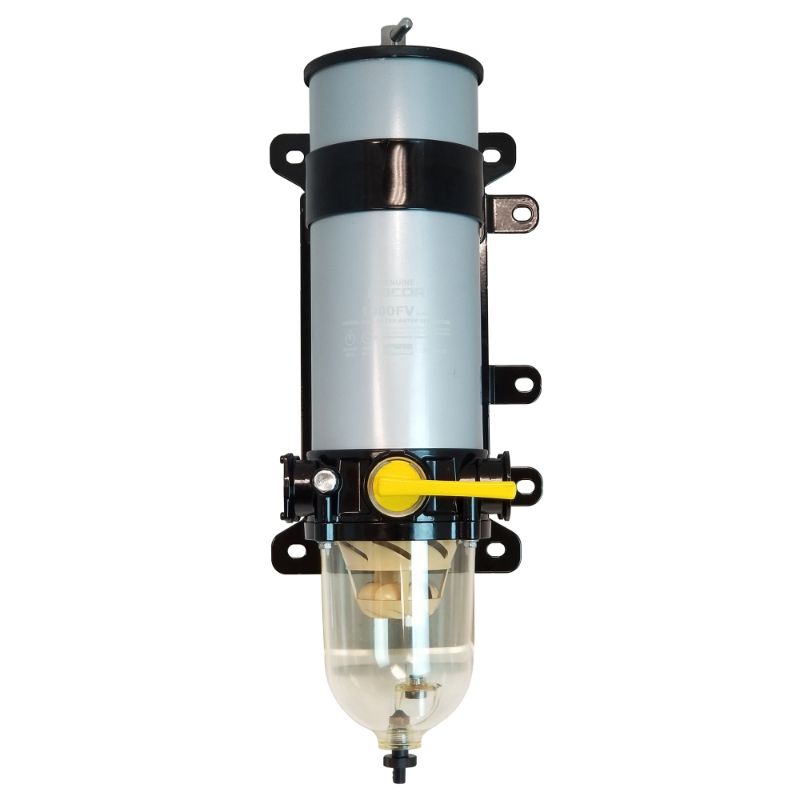

Parker 1000FV10 - Fuel Filter Water Separator – Racor Turbine Series

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

AFP Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. 1000FV10

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Original Equipment Division
Brand	Racor	Connection Type	1-5/16”-12 UN-2B (SAE 1926-1) Adapters Supplied
Application	Mobile Filtration	Bowl Type	Clear Engineering Plastic
Valve Type	Single Isolation Valve	Catalog Number	See RSL0410
Series or Model Replaced	Replaces all Non-heated 1000 Series	Heater	Not Included
Location	North America and EMEA regions	Flow Rate	180 gph (681 lph)
Part Type	1000 Single Turbine V Assembly	Product Type	Turbine Filter Housing
Micron Rating	98% @ 10 Micron
