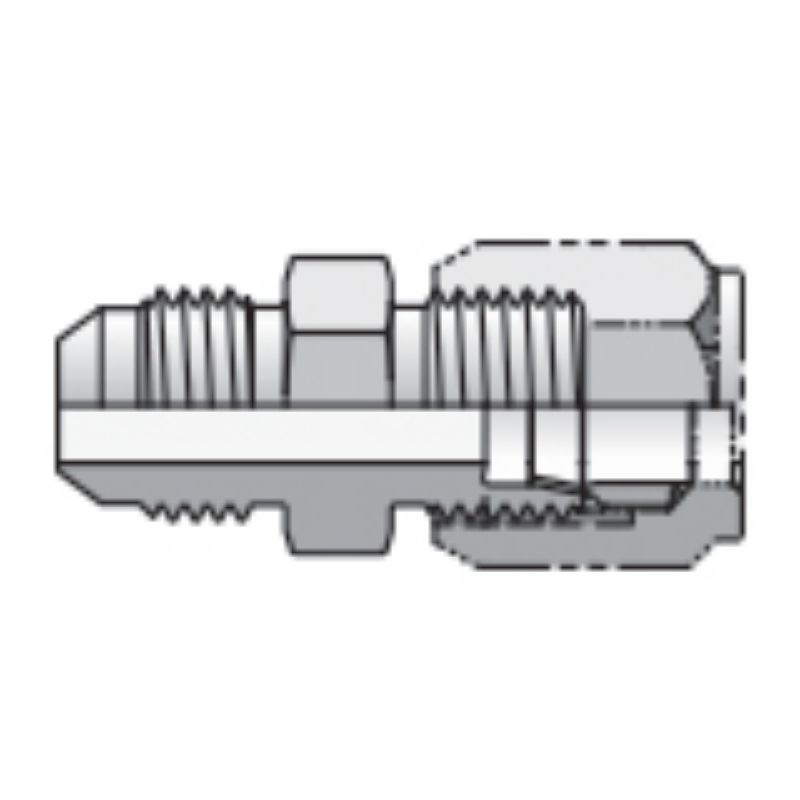

Parker 10 XHBU-S - Conversion Adapters for Tube and Hose Connections

Name: Parker 10 XHBU-S - Conversion Adapters for Tube and Hose Connections
SKU: 10 XHBU-S
Price: 84.68 USD
Availability: InStock

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed.

AFP Availability:

96 In Stock

Mooresville, NC	40
Summerville, SC	31
Norfolk, VA	18
Grovetown, GA	5
Jacksonville, FL	2

Partner Available:

40 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 XHBU-S

$84.68/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Dynamic Pressure	5000 psi	Dimensional Weight	0.07913669064748201 lb
Division	Tube Fittings Division	Connection Type	Conversion Adapter
Shape	Straight	Body Material	Steel
O-Ring Material	na	Connection 2 Style	Male Flareless Bite Type
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	5/8
Connection 1 Tube O.D. (mm)	na	Connection 1 Style	Male 37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
