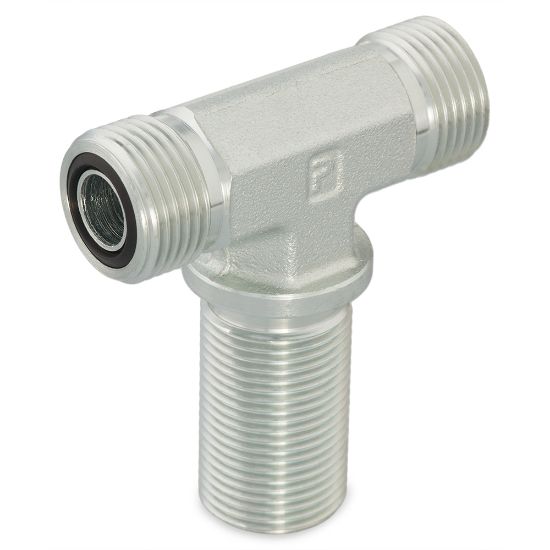

Parker 10 WJLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 WJLO-S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Dimensional Weight	0.07913669064748201 lb
Maximum Dynamic Pressure	6000 psi	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Connection Type	O-ring Face Seal	Connection 1 Type	Male O-Ring Face Seal
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 4 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	5/8 inch
Connection 2 Type	Male O-Ring Face Seal	Shape	Tee
Connection 3 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Type	Male O-Ring Face Seal Bulkhead
