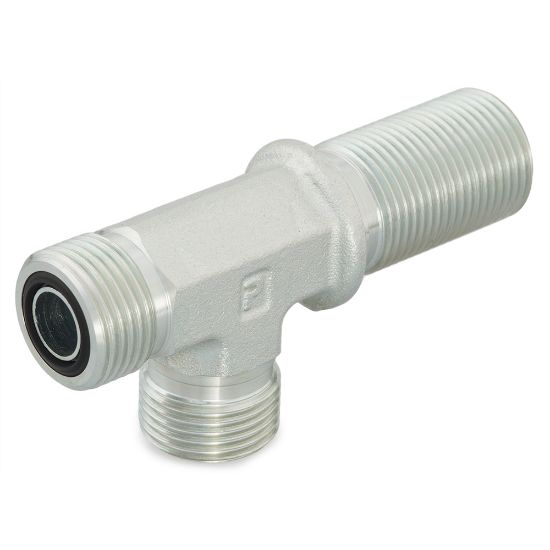

Parker 10 WJJLO-WLNL-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 WJJLO-WLNL-S FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	O-Ring Material	90 Durometer Fluorocarbon
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 4 Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Tube Outside Diameter	na
Connection 2 Tube Outside Diameter	5/8 inch	Shape	Tee
Connection 3 Type	Male O-Ring Face Seal	Connection 3 Tube Outside Diameter	5/8 inch
Connection 2 Type	Male O-Ring Face Seal Bulkhead with Locknut	Dimensional Weight	5.431767086330935 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
