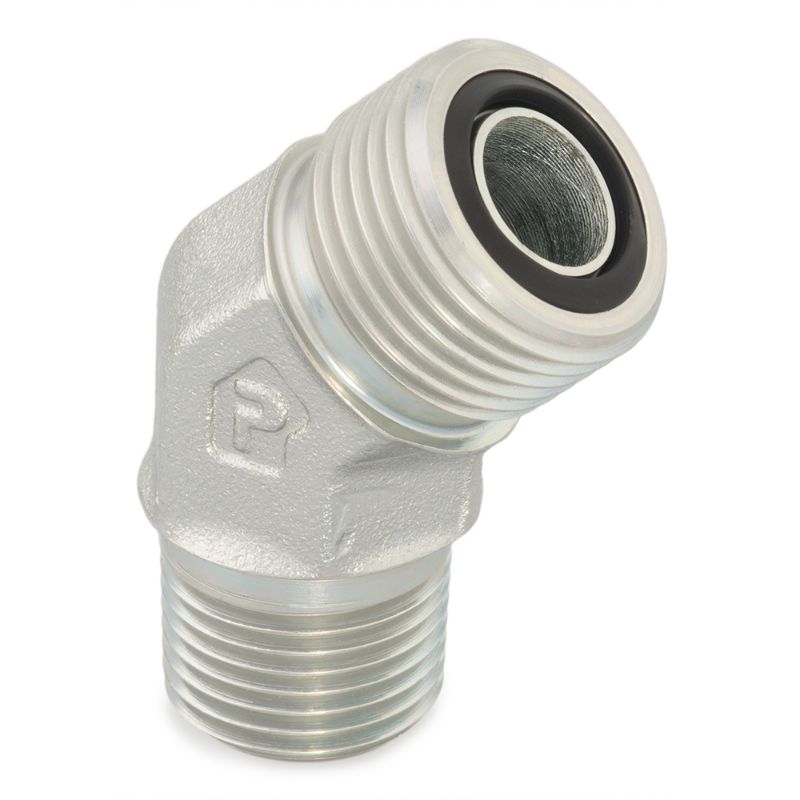

Parker 10 VLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	23 In Stock

Brand Parker

Part No. 10 VLO-S

$57.72/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	45° Elbow
Connection 2 Tube Outside Diameter	na	Connection 2 Thread Size	na
Body Material	Steel	Connection 2 Type	Male NPT/NPTF
Connection 3 Type	na	Maximum Dynamic Pressure	6000 psi
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Dimensional Weight	0.19784172661870503 lb	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	O-Ring Material	90 Durometer Nitrile
Connection Type	Tube to NPT	Connection 4 Type	na
Division	Tube Fittings Division
