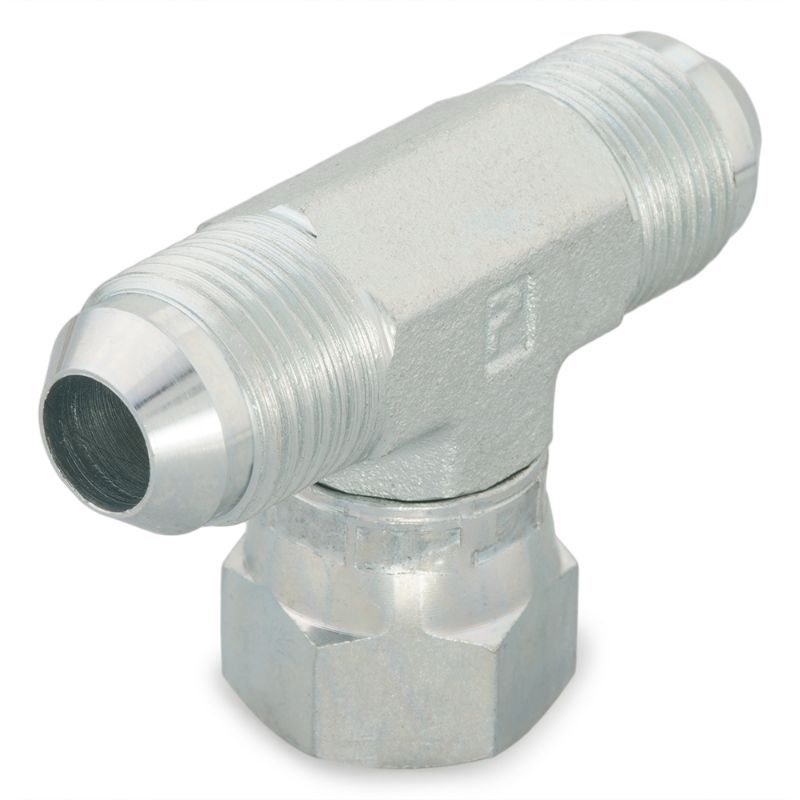

Parker 10 S6X-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. 10 S6X-SS

$179.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Size	na
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Shape	Tee	Body Material	Stainless Steel
Connection Type	Branch Tee	Connection 1 Size	Male 37° Flare
Connection 2 Size	Male 37° Flare	Connection 3 Size	Female 37° Flare Swivel
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	5/8 inch	Connection 4 Tube Outside Diameter	na
O-Ring Material	na	Dimensional Weight	0.12464028776978417 lb
Specifications Met	SAE J514
